66 System Configurations

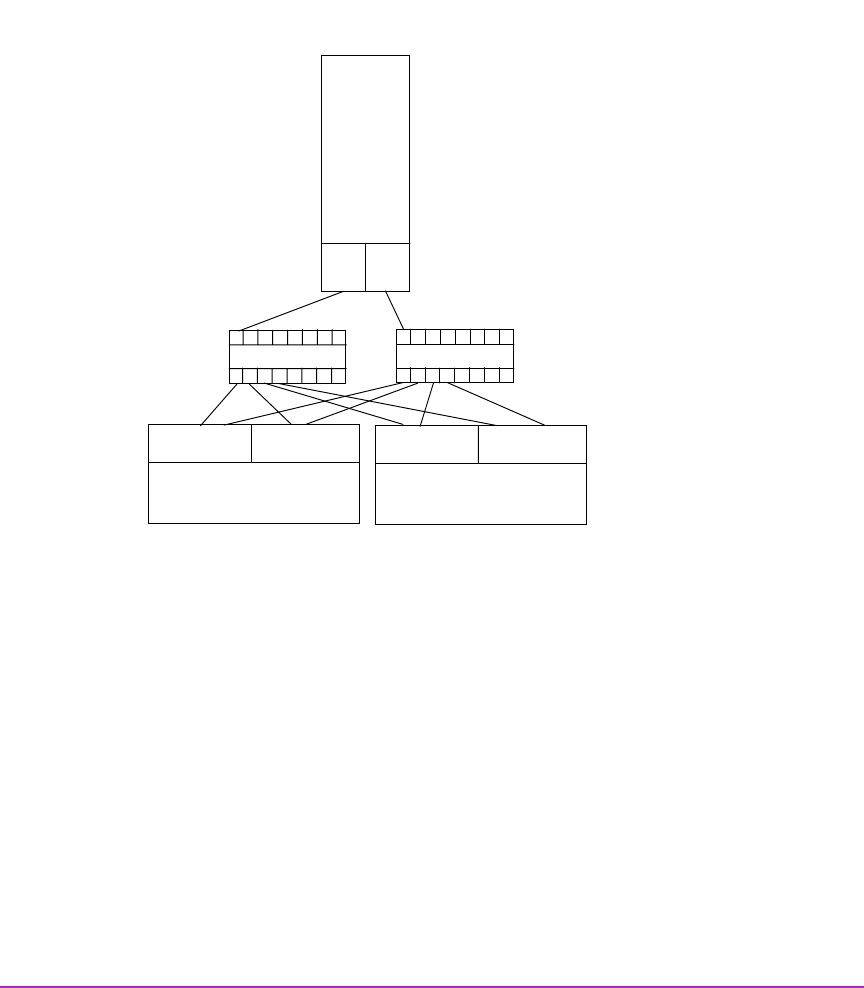

Typical Non-Clustered with Path Redundancy (VA 7410)
Array
Controller 1
Controller 2
Host
HBA
HBA
Switch
Switch
Array
Controller 1
Controller 2
Dual controllers
Dual HBAs
Requires multi-path driver
Redundancy in storage paths, not
hosts
Windows 2000/HP-UX/Linux
supported
Command View SDM required
