System Configurations 59
System Configurations
This chapter illustrates some of the typical system configurations which can be
built using the VA arrays.
Note These are representative configurations. For more detailed
information on VA array system configurations, contact your HP
Sales Representative.

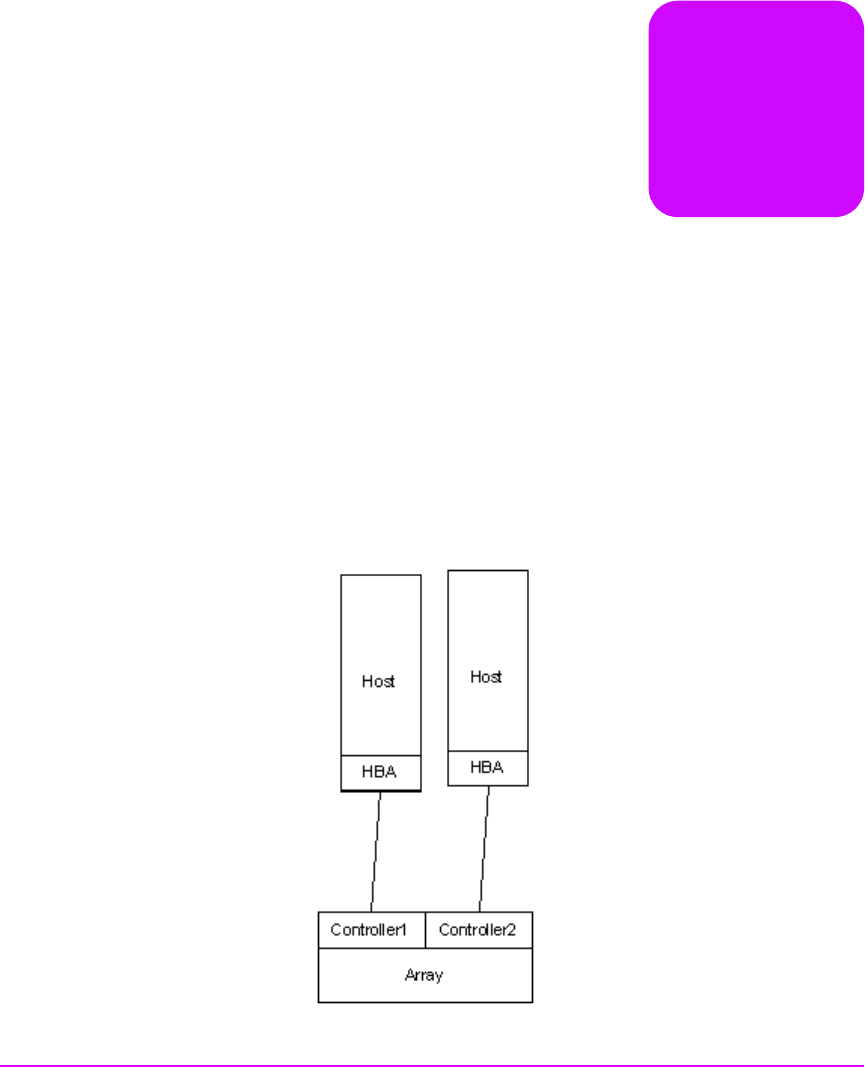

Lowest Entry Point, Non-HA Minimum Configuration (VA 7100 only)
Single HBA (two hosts)
Dual controller
No Multi-Path driver required
No hub or switch required
Windows/HP-UX/Linux supported
Command View SDM required
2
