22 Product Overview

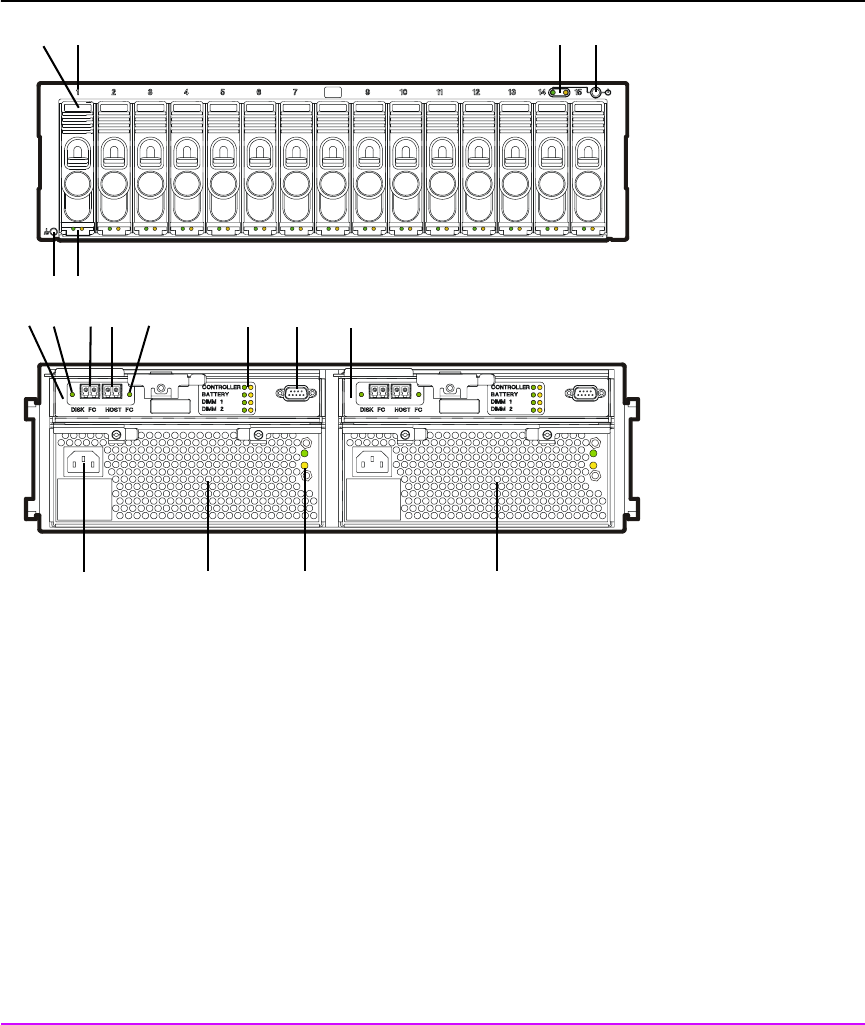

Figure 5 VA 7400 Controller Enclosure
*Reference designator used in CommandView SDM
1 - Power/Standby Switch 10 - HOST FC Connector - M/C1.H1*
2 - System LEDs 11 - HOST FC LED
3 - Disk Drive Slot No. 1 (of 15) 12 - Array Controller LEDs
4 - Disk Drive 1 (of 15) - M/D1* 13 - RS-232 Connector
5 - Disk Drive LEDs 14 - Array Controller 2 - M/C2*
6 - ESD Ground Receptacle 15 - Power Module 1 - M/P1*
7 - Array Controller 1 - M/C1* 16 - AC Power Connector
8 - DISK FC LED 17 - Power Module LEDs
9 - DISK FC Connector - M/C1.G1* 18 - Power Module 2 - M/P2*
21
3
4
65
16 15 17 18
8
9
12 137
1110
14
