Troubleshooting 81
Troubleshooting

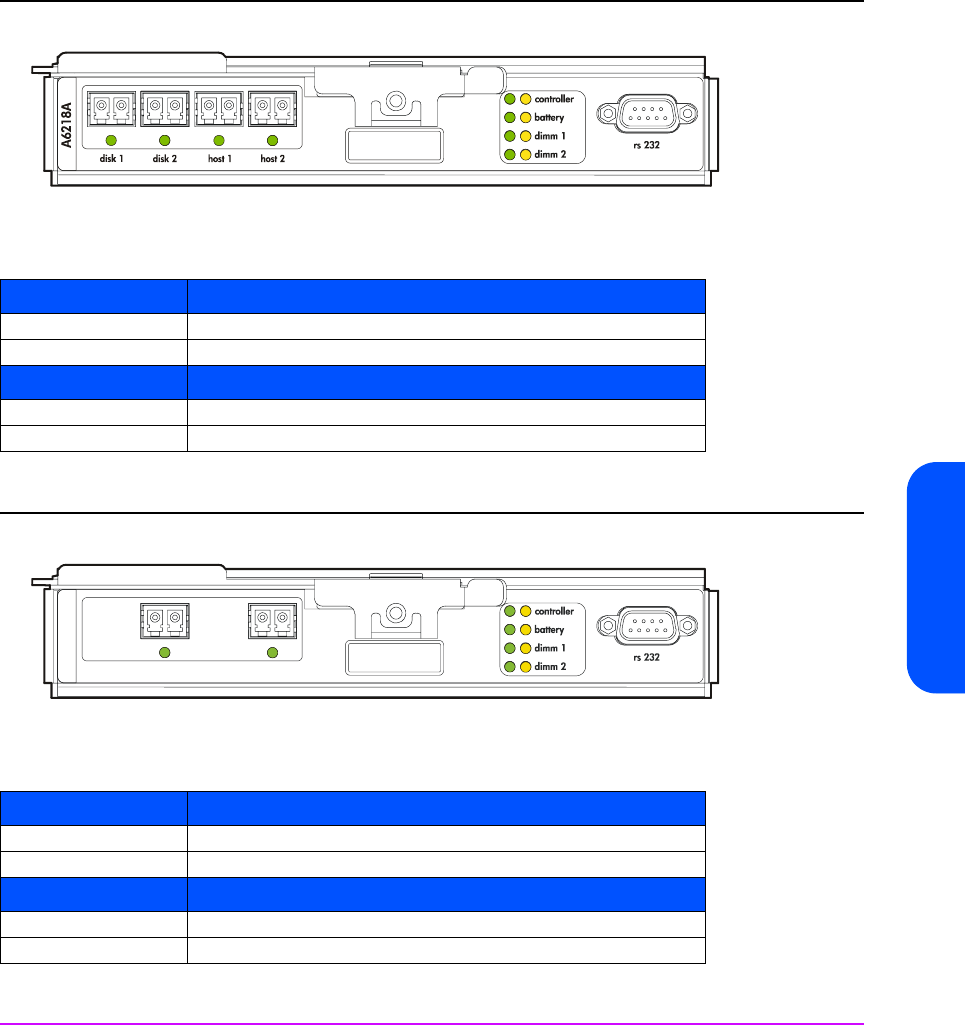

Figure 28 VA 7410 Array Controller LEDs
Table 10 DISK & HOST LED Status Indications (See Figure 28)
Figure 29 VA 7110 Array Controller LEDs
Table 11 DISK & HOST LED Status Indications (See Figure 29)
DISK 1 & Disk 2 Indication
Off Unit not under power
or
disk enclosure (backend) FC link down.
On Valid Fibre Channel link to disk enclosure.
HOST 1 & HOST 2
Off Unit not under power
or
host (frontend) FC link down.
On Valid Fibre Channel link to host.
DISK Indication
Off Unit not under power
or
disk enclosure (backend) FC link down.
On Valid Fibre Channel link to disk enclosure.
HOST
Off Unit not under power
or
host (frontend) FC link down.
On Valid Fibre Channel link to host.
hostdisk
A
6
2
1
8
A
