72 System Configurations

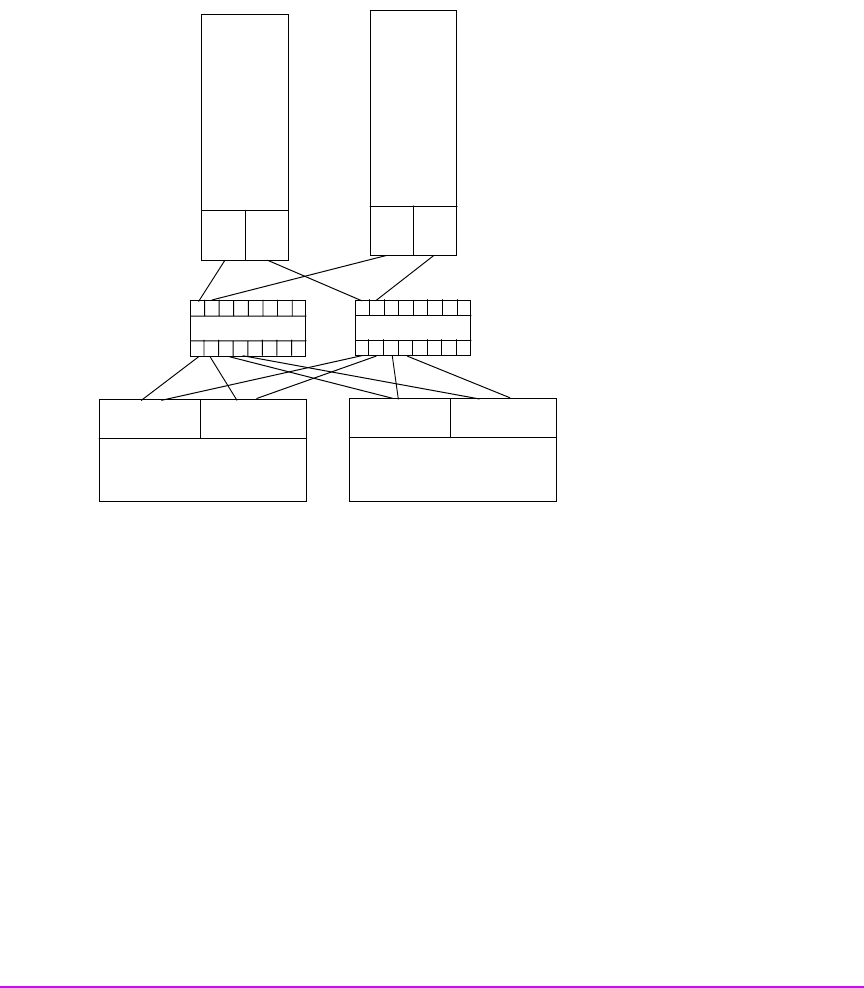

Typical Highly Redundant Cluster (VA 7410)
Array
Controller 1
Controller 2
Host
HBA
HBA
Switch
Switch
Host
HBA
HBA
Array
Controller 1
Controller 2
Requires dual HBAs
Dual controllers
Requires LUN Security support
Requires multi-path driver
(Windows 2000 and HP-UX only)
SAN Manager software
recommended
Command View SDM required on
one of the hosts
