Product Overview 29
Product Overview
Disk Enclosure Components

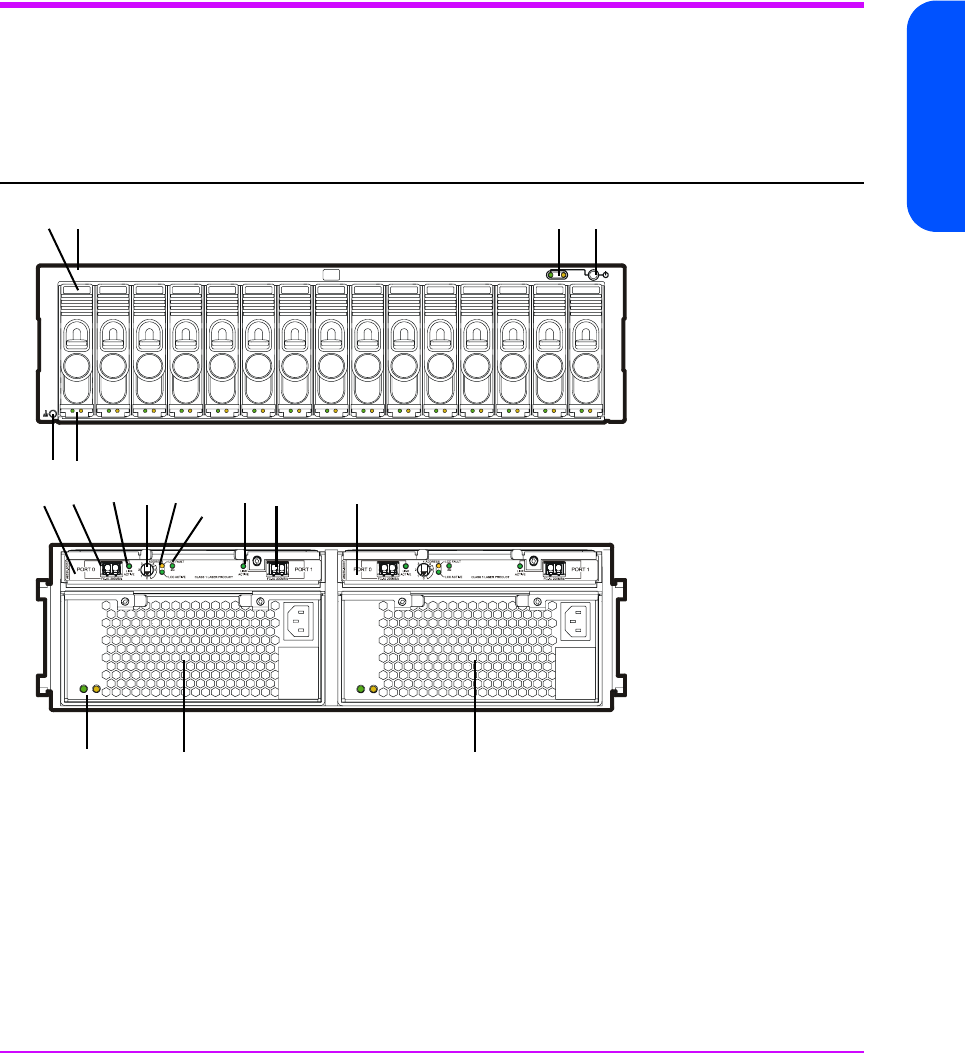

Figure 7 shows the front and rear panel components of the disk enclosure
connected to the VA 7400/7410 controller enclosure. Both DS 2400 and
DS 2405 Disk Systems are used as disk enclosures on the VA 7400/7410.
Figure 7 VA 7110/7400/7410 Disk Enclosure (A/AZ)
*Reference designator used in CommandView SDM
1 - Power/Standby Switch 10 - ADDRESS Switch
2 - System LEDs 11 - LCC LEDs
3 - Disk Drive Slot No. 1 (of 15) 12 - PORT 1 LINK ACTIVE LED
4 - Disk Drive 1 (of 15) - JAn/D1* 13 - PORT 1 FC-AL Connector - JAn/C1.J2*
5 - Disk Drive LEDs 14 - Link Controller Card 2 - JAn/C2*
6 - ESD Ground Receptacle 15 - Power Module 1 - JAn/P1*
7 - Link Controller Card 1 - JAn/C1* 16 - Power Module LEDs
8 - PORT 0 FC-AL Connector - JAn/C1.J1* 17 - 2G LED (DS 2405 Disk System only)
9 - PORT 0 LINK ACTIVE LED 18 - Power Module 2 - JAn/P2*
123
4
56
9
8
10
11
16 15 18
7
12
13
14
17
