Product Overview 23
Product Overview

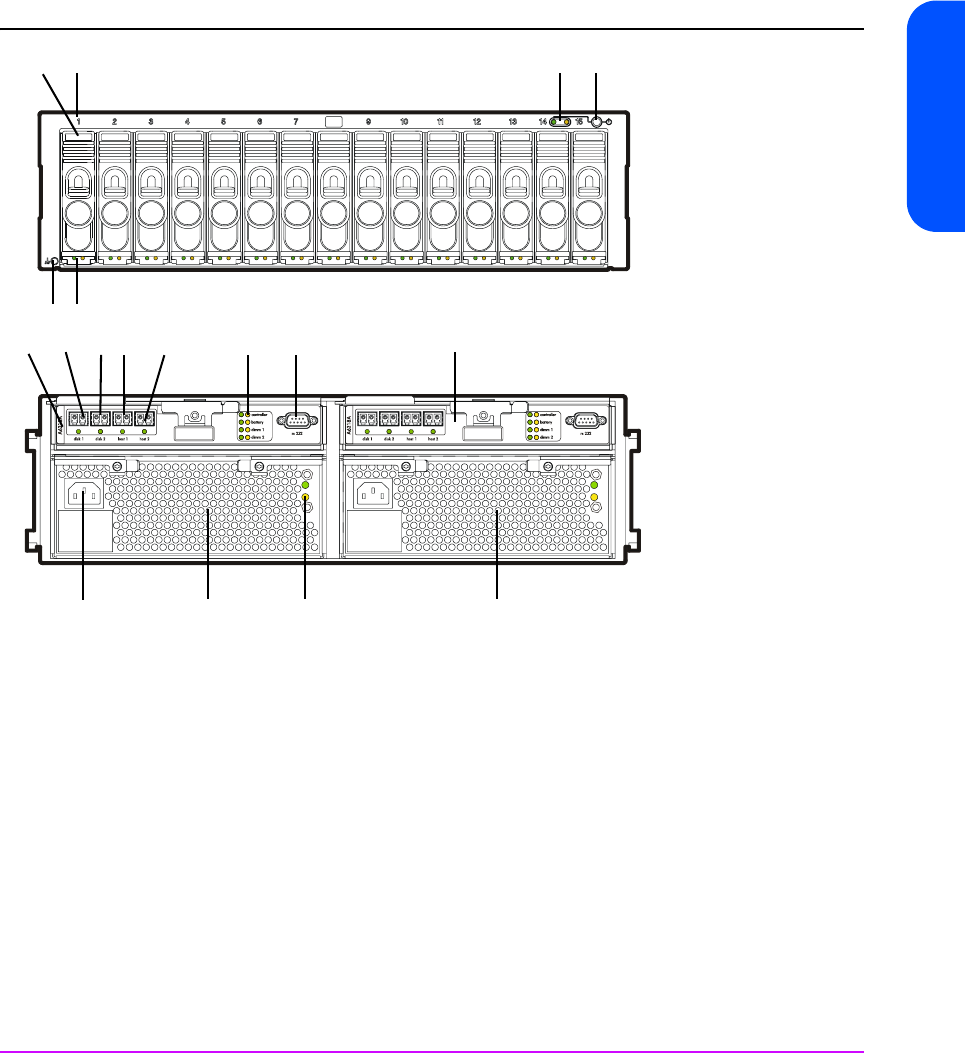

Figure 6 VA 7410 Controller Enclosure (A/AZ)
*Reference designator used in CommandView SDM
1 - Power/Standby Switch 10 - HOST 1 FC Port and LED (M/C1.H1*)
2 - System LEDs 11 - HOST 2 FC Port and LED (M/C1.H2*)
3 - Disk Drive Slot No. 1 (of 15) 12 - Array Controller LEDs
4 - Disk Drive 1 (of 15) (M/D1*) 13 - RS-232 Connector
5 - Disk Drive LEDs 14 - Array Controller 2 (M/C2*)
6 - ESD Ground Receptacle 15 - Power Module 1 (M/P1*)
7 - Array Controller 1 (M/C1*) 16 - AC Power Connector
8 - DISK 1 FC Port and LED (M/C1.J1*) 17 - Power Module LEDs
9 - DISK 2 FC Port and LED (M/C1.J2*) 18 - Power Module 2 (M/P2*)
21
3
4
65
16 15 17 18
8
9
12
137
11
10
14
