Gigabit Interface Converters
(VA 7100 Array Controller Only)
Caution To prevent data transmission problems, always leave the GBIC
cover installed until you are ready to connect the fiber optic
cable to the GBIC (see Figure 41).
Removing a GBIC
1 Remove the fiber optic cable (Figure 39, 1).
2 Push in the GBIC tabs (Figure 39, 2) and gently pull the GBIC (3) out of the
HOST FC slot.
Installing a GBIC
1 Remove the GBIC cover (Figure 41).
2 With even pressure, gently push the GBIC (Figure 39, 3) into the HOST FC
slot until it clicks into place.
3 Replace the fiber optic cable (Figure 39, 1).

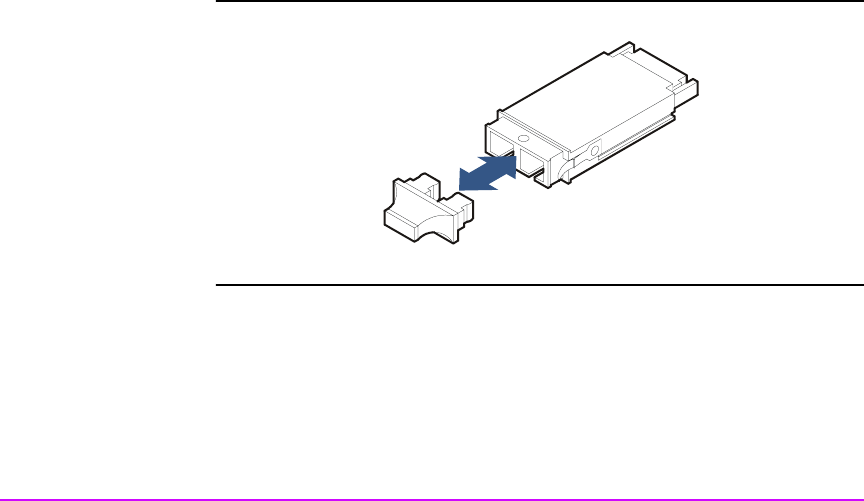

Figure 41 GBIC Cover
