Tape Fan Option Kit for ProLiant ML530/570 Servers

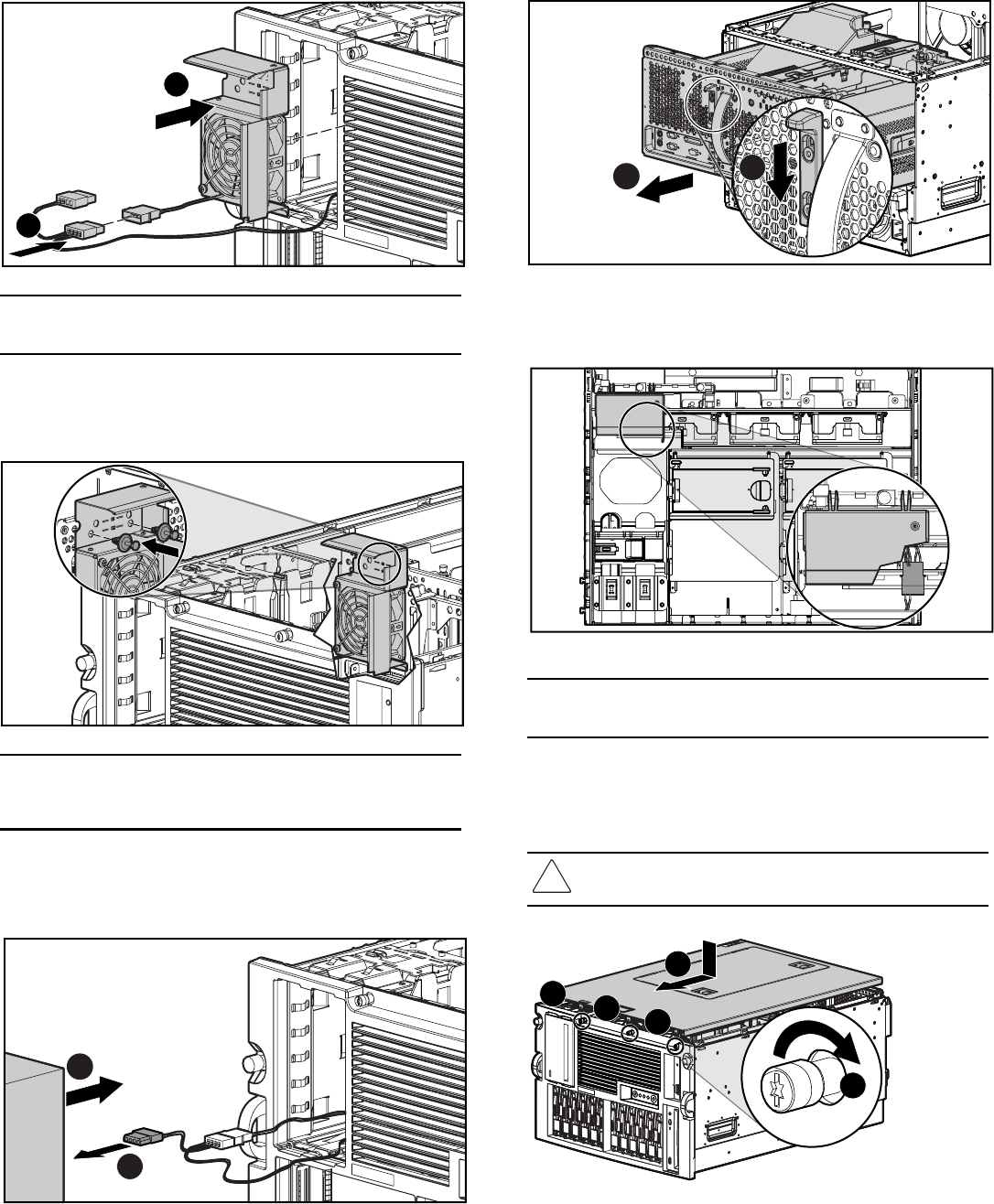

Step 4: Connect fan power and place into
server
Note: Be sure power cable is in front of fan before positioning
assembly in back of bay.
Step 5: Attach bracket with fasteners into
holes
Note: Use holes marked G1 for generation 1 servers or G2 for
generation 2 servers. Generation 2 servers are identified by G2 in
the corner of the front bezel.
Step 6: Connect drive power, SCSI cable
(not shown), and install tape drive
Step 7: Slide chassis out from rear of the
server
Step 8: Route fan cable on side of tape
drive
Note: For optimal air flow, route cables on side of tape drive away
from the fan.
Step 9: Replace chassis and top/side
panel
Caution: While sliding the chassis into place be sure to
route internal cables away from fans.
15049
2
1
15050
2
1
15051
3
3
2
1
15052
15053
1
2
1
1
15054
2
2
2
1
2
