ACLs are not defined (as in Basic configuration 1), all initiators connected to a port can access all
storage targets (and their mapped LUNs) associated with that port.
Port
IP Address Portal Portal Alias Portal Group
Target
MA0
100.10.1.1
N/A N/A N/A N/A
SA0 100.10.1.10 3260 SA0-3260 PG1-Target1
Target1
SA1
100.20.1.11 3260
SA1-3260
PG1-Target2 Target2
Server 1 NIC
100.10.1.200
N/A N/A N/A N/A
Server 2 NIC
100.10.1.201
N/A N/A N/A N/A
Server 3 N
IC 100.20.1.202
N/A N/A N/A N/A
Server 4 NIC
100.20.1.203
N/A N/A N/A N/A

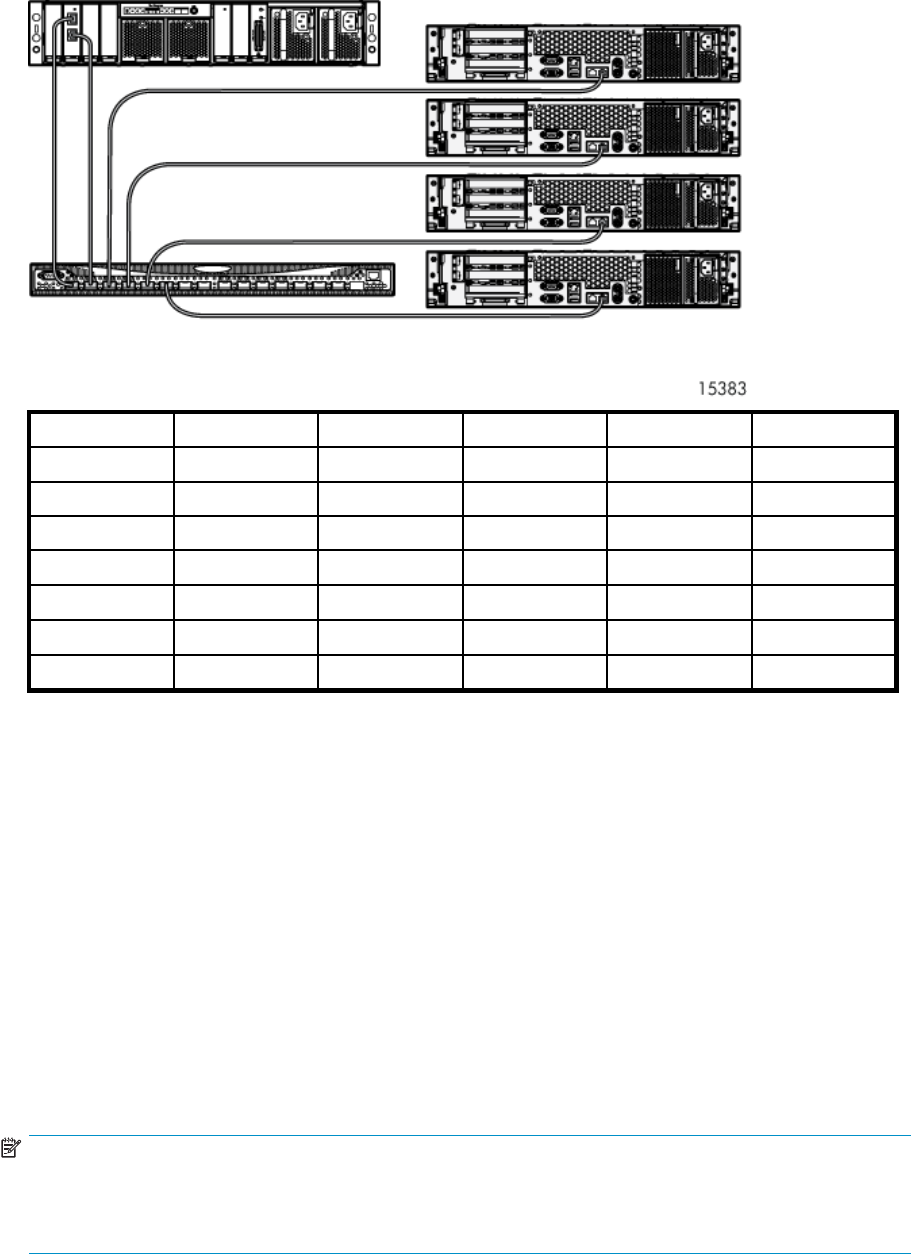

In this example, of the four network servers, two are assigned to each subnet (and storage port. To
enable full access to both ports, the servers may be multi-homed on a single NIC to have presence on all
subnets. An alternative to multi-homed NICs is to flatten the network into one subnet for all network ports.
Example advanced configurations
As more servers access the MSA1510i, a failure in the network or MSA1510i becomes increasingly
difficult to manage. A more advanced configuration is needed to ensure uninterrupted access to the
storage in these more complex networks. On the MSA1510i, high availability is achieved through
a combination of redundant components (controllers, power supplies, fans), high-availability network
designs, and vertical striping of RAID sets (to protect against hard drive failures).
In the following configurations, more advanced capabilities of the MSA1510i are introduced, including:
• Dual M
SA controllers
• VLANs
• iSCSI CHAP authentication
• Remo
te monitoring
NOTE:
To simplify the illustrations, Advanced Configurations 1 and 2 omit some of the previously introduced
concepts of the Basic configurations, but this does not imply that the new concepts introduced cannot be
used together with the previous concepts.
