HP StorageWorks 1510i Modular Smart Array iSCSI concepts and deployment guide (431338-002, July 2008)

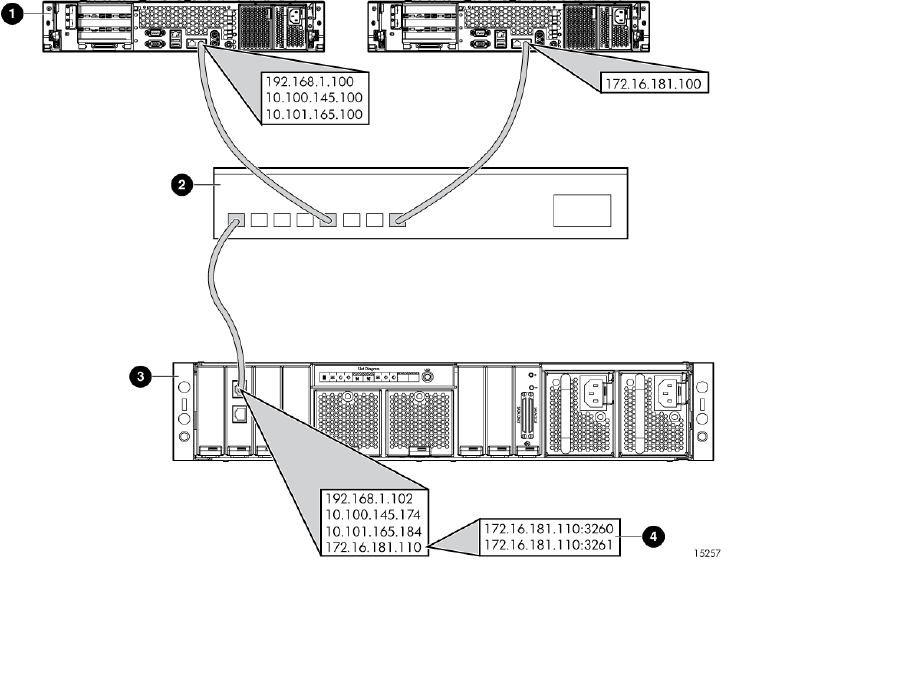

1. S e r v e r
s (initiators), showing the IP addresses (network portals) of the NICs
2. Ethernet network switch
3. MSA1510i, showing the IP addresses of a storage port
4. MSA151
0i, showing the storage portals with their TCP assignments
Storage port gateway support
If your network uses routers, the MSA1510i can support digests. For more information about setting up
the default gateway, see Gateways.
Storag
eportVLANsupport
If your
network uses VLANs, when configuring the MSA1510i storage ports, you can specify the ID of
the net
work VLAN through which you want storage traffic from that port to pass. For more information
about VLANs, see Virtual LANs (VLANs).
