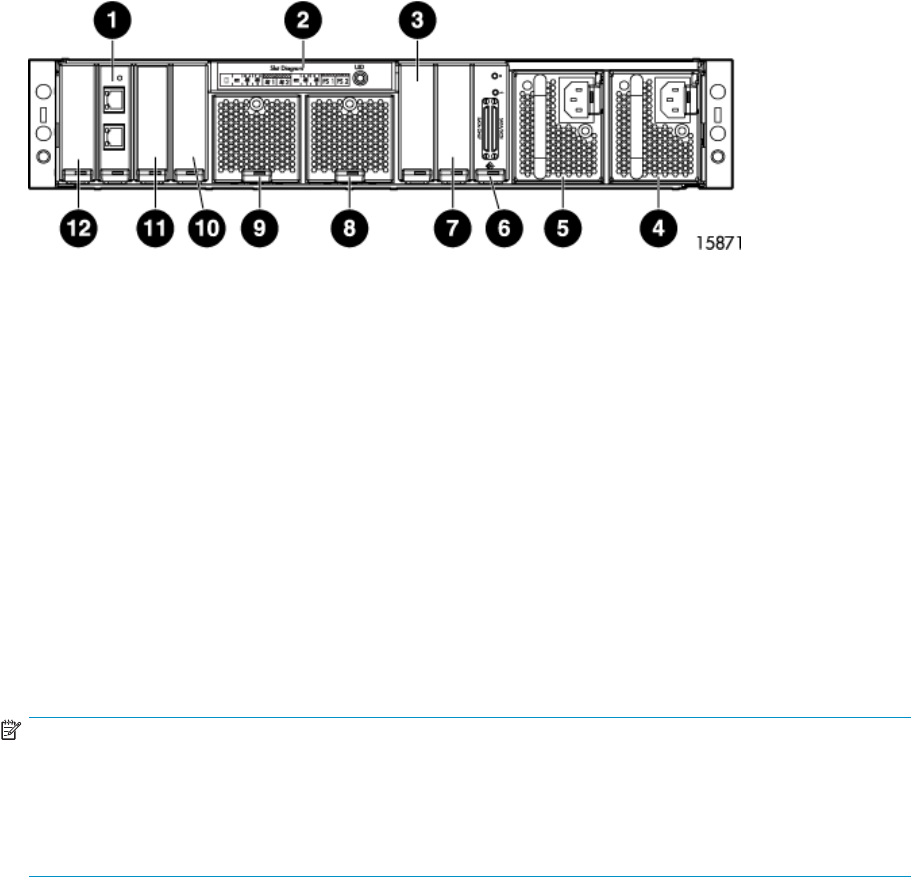

Rear view
1. 2–Port Ethernet iSCSI module (for the controller in slot 1)
2. Chassis sl
ot diagram
3. Blank for optional 2–Port Ethernet iSCSI module (for the controller in slot 2)
4. Power supply module 2
5. Power sup
ply module 1
6. SCSI I/O module (bus 0)
7. Blank for optional SCSI I/O module (bus 1)
8. Fan module 2
9. Fan module 1
10. Blank for optional SCSI I/O module (bus 2)
11 . B l a n k f
or optional SCSI I/O module (bus 3)
12. U nu s ed s l ot
NOTE:
Each MSA SCSI I/O module has two ports. Depending on the type of external hard drive storage
enclosure, one or maybe both of the ports may be used.
• When connecting SATA enclosures, both ports may be used.
• WhenconnectingSCSIenclosures,onlytherightportmaybeused.
