2MSA1510ioverview
The MSA1510i is an iSCSI storage target. Depending on the network, MSA1510i LUNs can be organized
as one or as multiple virtual storage targets.
For communication sessions to take place, identifying names and IP addresses must be defined for each
initiator and target. By default, MSA firmware automatically assigns a unique name to each MSA storage
target using an industry-standard format. One or more IP addresses must manually be assigned to each
target through MSA firmware or software tools.
These fundamental iSCSI concepts and how they are implemented on the MSA1510i are expanded in
the following sections:
•MSA1510iphysicalviews
• MSA1510i network connections
• MSA1510i storage targets
•Initiators
• Virtual LANs (VLANs)
•Gateways
MSA1510i p
hysical views

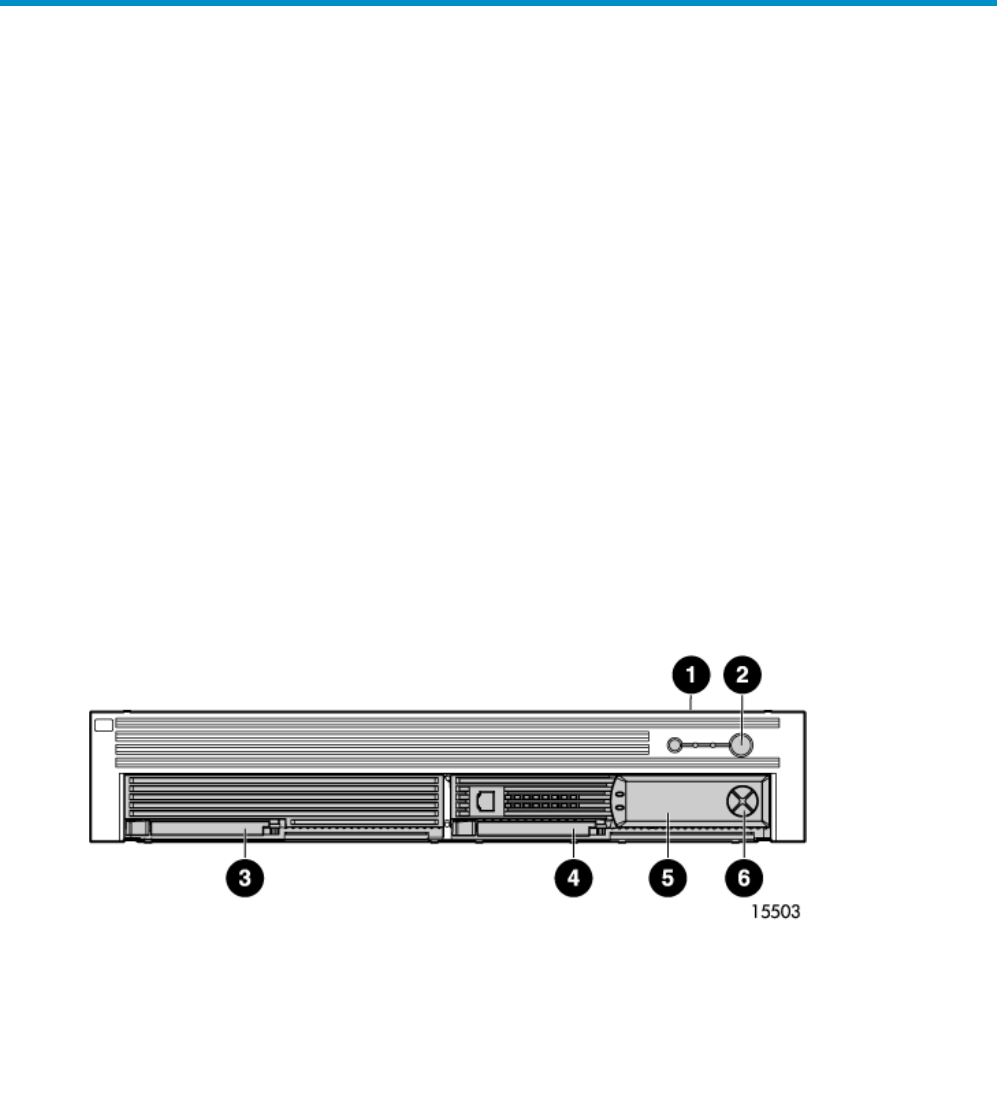

Front view
1. C h a s
sis LEDs
2. Power On/Standby button
3. Blank for optional controller (controller slot 2)
4. Controller (controller slot 1)
5. Controller LCD message display panel
6. Controller LCD display panel push buttons
