HP StorageWorks Modular Smart Array 1000 Configuration Procedures for HP-UX Addendum (365448-001, April 2004)

Fibre Channel Arbitrated Loop and direct connect deployments
10 Modular Smart Array 1000 Configuration Procedures - for HP-UX Addendum
5. In the MSA Flash Utility, click Find.
After a few moments, all detected MSA1000 controllers are displayed.
Note: The correct firmware version on the controller is displayed in the ROM column.

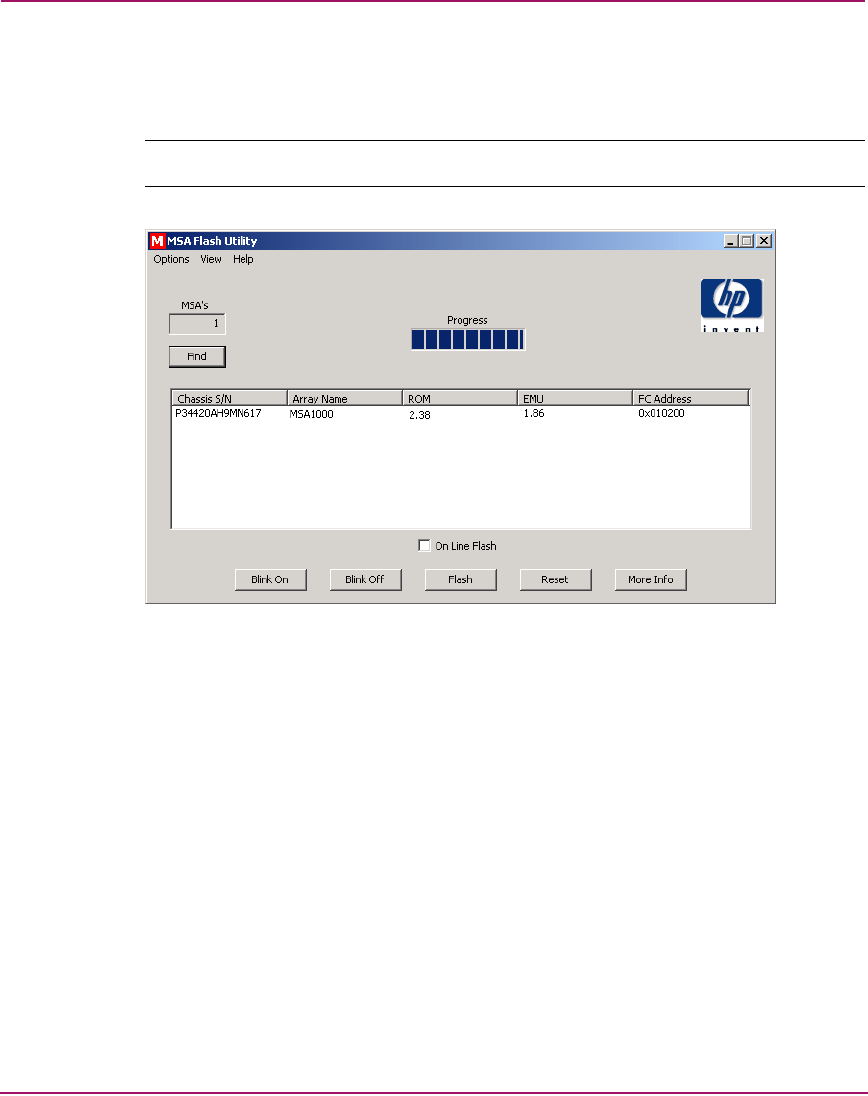

Figure 1: Finding all MSA1000 controllers
6. Select the controller to update and click Flash.
An informational message estimating the time required to flash the firmware
is displayed.
After closing the message, a directory window is displayed.
