B–6 HSG80 ACS Solution Software Version 8.6 for IBM AIX Installation and Configuration Guide

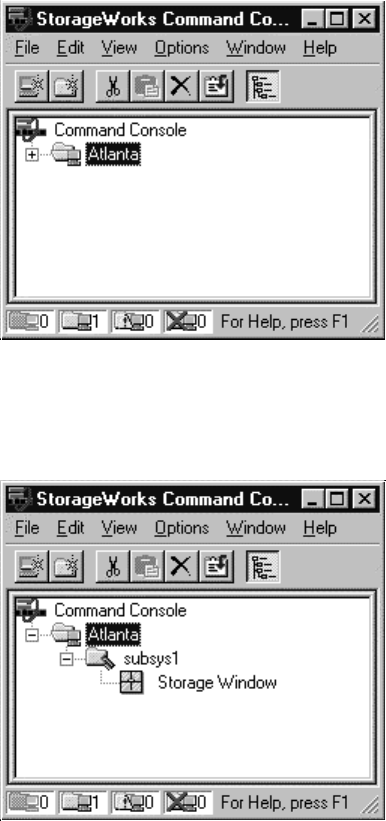

Figure B–2. Navigation window showing storage host system “Atlanta”
6. Click the plus sign to expand the host icon. When expanded, the Navigation Window
displays an icon for the storage subsystem. To access the Storage Window for the
subsystem, double-click the Storage Window icon.
Figure B–3. Navigation window showing expanded “Atlanta” host icon
NOTE: You can create virtual disks by using the Storage Window. For more information on the
Storage Window, refer to Compaq StorageWorks Command Console Version 2.4 User Guide.
