Configuration Procedures 5–11

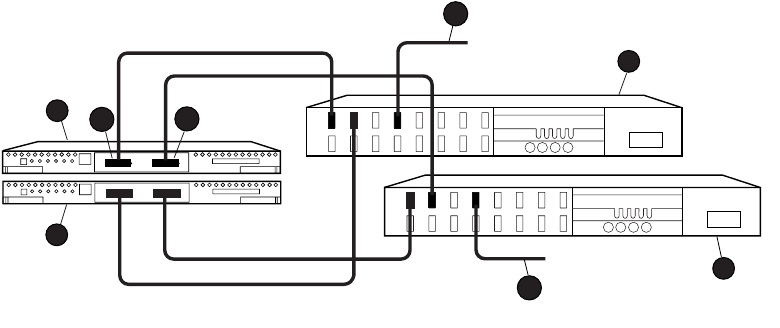

The following figure shows a controller pair with failover cabling showing one HBA per
server with HSG80 controller in transparent failover mode.
Figure 5–3. Controller pair failover cabling
Configuring a Controller Pair Using CLI
To configure a single controller using CLI involves the following processes:
■ Establish a Connection to the System Controller.
■ Configure Controller Settings.
■ Set This Controller.
■ Set Time and Verify All Commands.
■ Plug in the FC Cable and Verify Connections.
■ Repeat Procedure for Each Host Adapter.
■ Configuring Devices.
Establish a Connection to the System Controller
1. Establish a serial data connection to the RAID system Controller A from your host.
1 Controller A
2 Controller B
3 Host port 1
4 Host port 2
5 Cable from the switch to the host FC adapter
6 FC switch
CXO6887B
6
6
5
5
1
2
4
3
