5–2 HSG80 ACS Solution Software Version 8.6 for IBM AIX Installation and Configuration Guide
IMPORTANT: These configuration procedures assume that controllers and cache modules are
installed in a fully functional and populated enclosure and that the PCMCIA cards are installed.
To install a controller or cache module and the PCMCIA card, see the Compaq
StorageWorks HSG80 Array Controller ACS Version 8.6 Maintenance and Service Guide.
Establishing a Local Connection
A local connection is required to configure the controller until a command console LUN
(CCL) is established using the CLI. Communication with the controller can be through the
CLI or SWCC.
The maintenance port, shown in Figure 5–1, provides a way to connect a maintenance
terminal. The maintenance terminal can be an EIA-423 compatible terminal or a computer
running a terminal emulator program. The maintenance port accepts a standard RS-232
jack. The maintenance port cable shown in Figure 5–1 has a 9-pin connector molded onto
the end for a PC connection. If you need a terminal connection or a 25-pin connection, you
can order optional cabling.

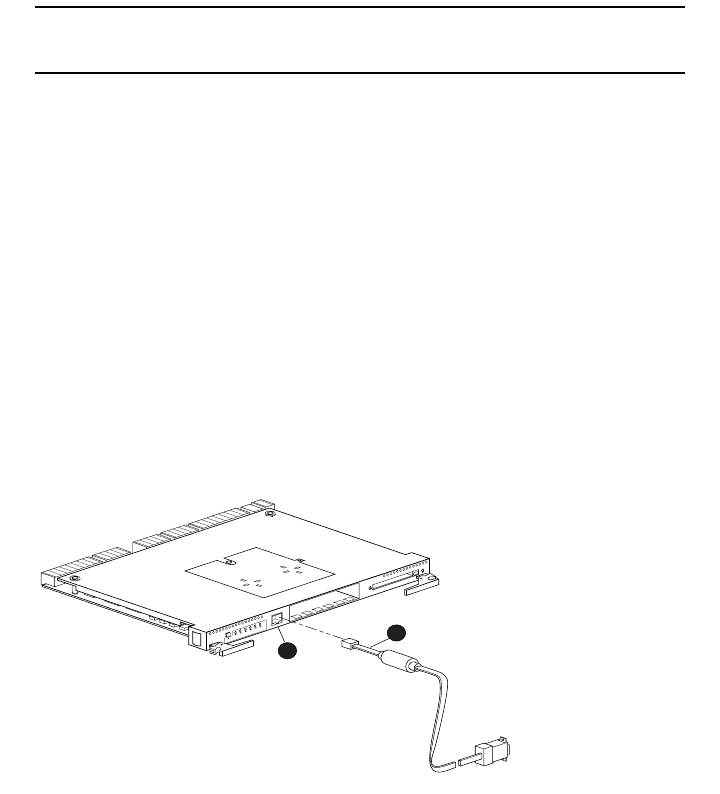

Figure 5–1. Maintenance port connection
1 Maintenance Port Cable 2 Maintenance Port
CXO7181A
1
2
3
4
5
6
1
2
