16 Edge Switch 2/24 Flexport Upgrade Instructions

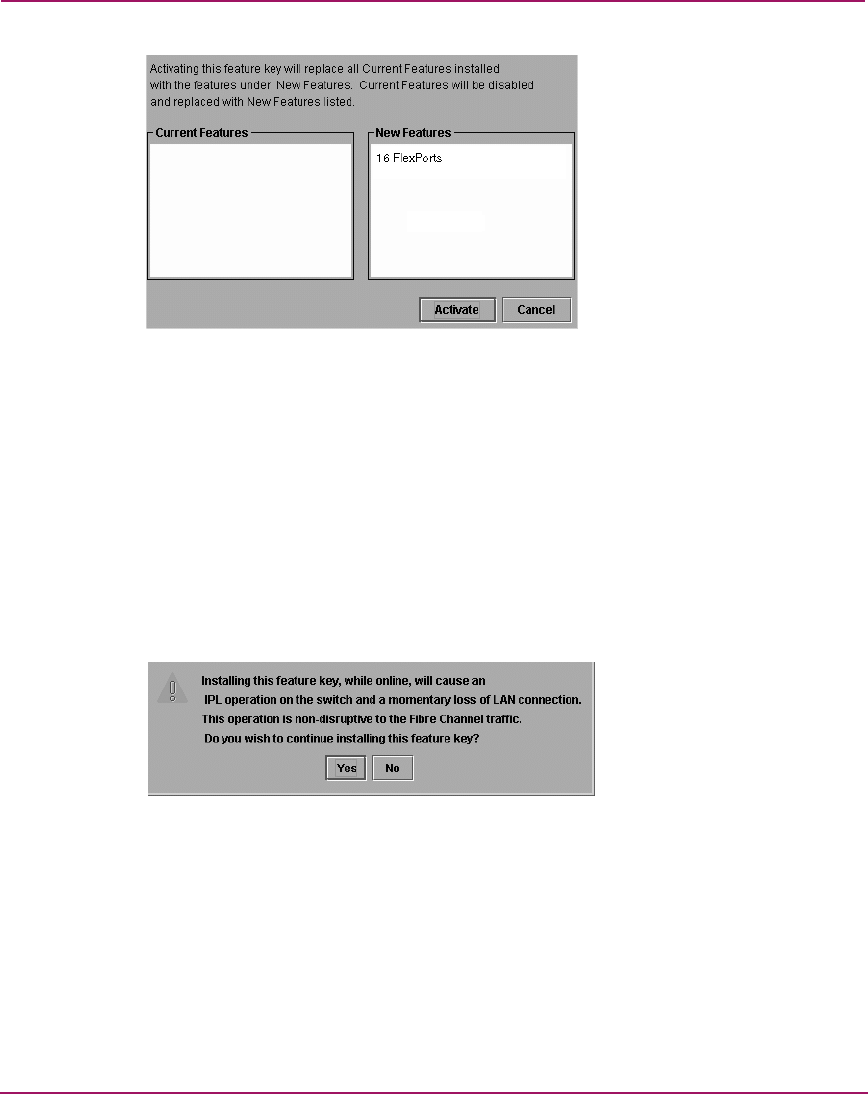

Figure 4: Enable Feature Key dialog box

The Enable Feature Key dialog box contains a warning, stating that this

action will override the current set of features on the switch.

If features are enabled on the switch, they will be listed in the Current

Features column on the left. The features that come with the new feature key

are listed in the New Features column on the right. All of the features that are

currently active on the switch are included in the list in the New Features

column.

4. Click Activate to activate the new feature key.

A warning dialog box displays (Figure 5).

Figure 5: Warning Dialog Box

5. Click Yes to enable the feature key. When the feature key is enabled, the

switch performs an IPL, during which the Ethernet connection between the

HAFM appliance and switch is momentarily interrupted.

When you are finished configuring the switch, you can back up the configuration

data.
