Edge Switch 2/24 installation guide 93
l. If the new firmware version was downloaded to a PC (not the HAFM appliance), transfer the
firmware version file to the switch by backup disk, CD-ROM, or other electronic means.
2. At the HAFM application’s physical map, right-click the product icon representing the Edge
Switch for which a firmware version is to be added, and then select Element Manager from the
pop-up menu.
The application opens.
3. Select Maintenance > Firmware Library.

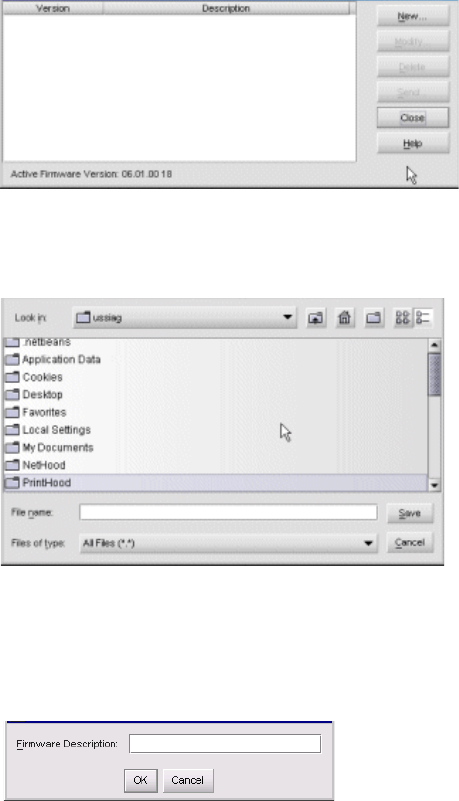

The Firmware Library dialog box is displayed (Figure 56).
Figure 56 Firmware Library dialog box
4. Click New.
The New Firmware Version dialog box is displayed (Figure 57).
Figure 57 New Firmware Version dialog box
5. Select the desired firmware version file (downloaded in step 1) from the HAFM appliance
backup drive, CD-ROM drive, or hard drive. Verify that the correct directory path and file name
is displayed in the File name box and click Save.
The New Firmware Description dialog box is displayed (Figure 58).
Figure 58 New Firmware Description dialog box
