Configuring port binding
Perform this procedure to configure Fibre Channel port binding by WWN.
1. Click Security > Port Binding.

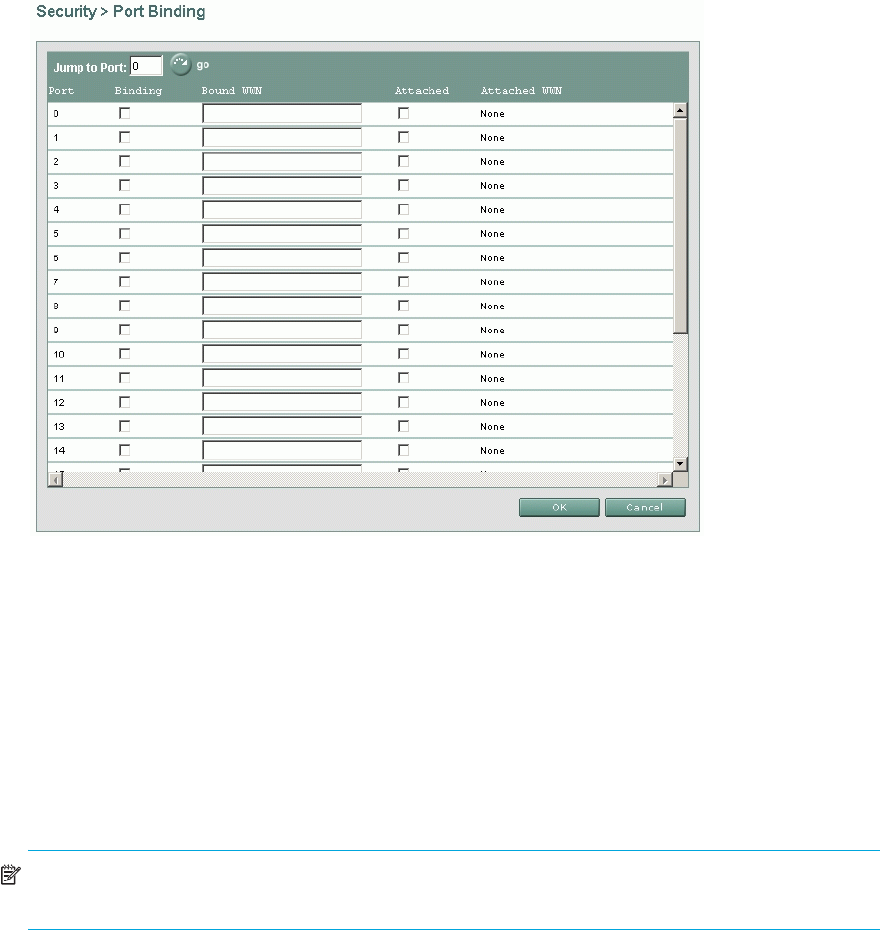

The Port Binding view is displayed (Figure 54).
Figure 54 Port Binding view
2. Select or clear the Port Binding check box to enable or disable port binding for a specified port.
Default is disabled.
3. Identify the WWN to which the port is bound using one of the following methods:
• Enter the WWN to which the port is to bind in the Bound WWN column.
The WWN must be entered as hex digits, all uppercase, and you must use a colon to
separate digits.
• Select or clear the the Attached check box.
This option is valid only if a WWN is present in the Attached WWN column, indicating that
the WWN that is currently attached to the port, but is not bound to it.)
NOTE: If Port Binding enabled, and a WWN is not specified for binding, no devices can attach to
the port.
4. Click OK to save the information.
