Using the HAFM Basic interface86
The Maintenance Feature Installation view is displayed (Figure 53)

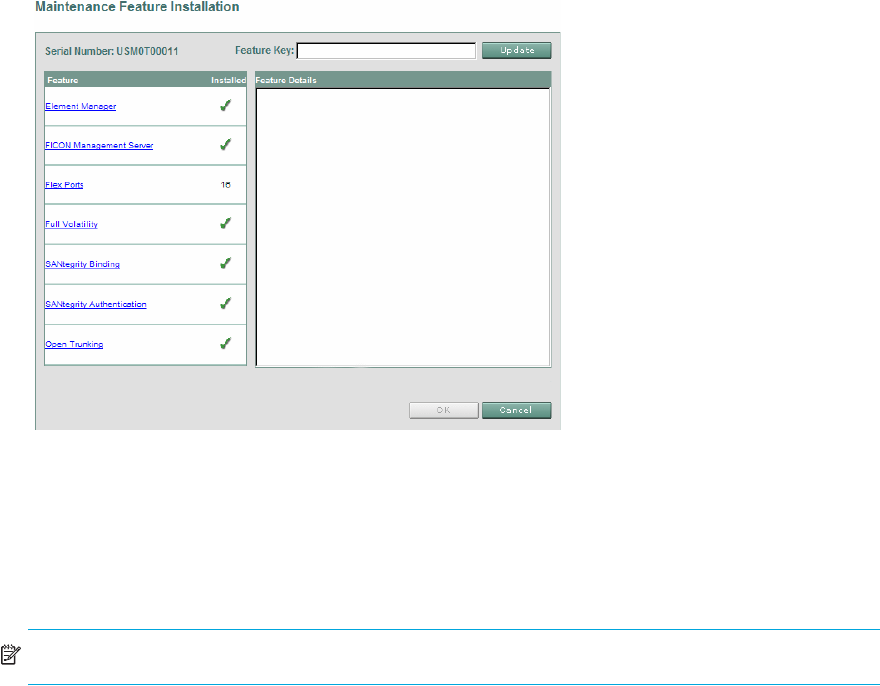

Figure 53 Maintenance Feature Installation view
Feature status is indicated by a green check mark
D(installed) or a red X (uninstalled). Flexport
technology status is indicated by the number of installed ports. Click a feature title in the Feature
panel and a description is displayed in the Feature Details panel.
2. Type the key in the Feature Key box and click Update.
The interface is refreshed and indicates the update changes in the Feature panel.
NOTE: When OK is selected, all features are updated with new features.
3. Click OK.
New PFE key(s) are activated, a non-disruptive (to Fibre Channel traffic) firmware reset occurs,
and the following message is displayed:
Feature installation in process. Your browser connection will be
unavailable until unit restart is complete.
After the product reset, the following message is displayed:
Feature installation complete. Click here to login.
4. Upon completion of the product reset, click Click here to login to start a new HAFM
Basic session.
The Enter Network Password dialog box displays.
Configuring Interswitch Links
This section describes optional ISL performance features configured through Configure menu
selections. Features include:
