Using the HAFM Basic interface84
The SSL view is displayed (Figure 52).

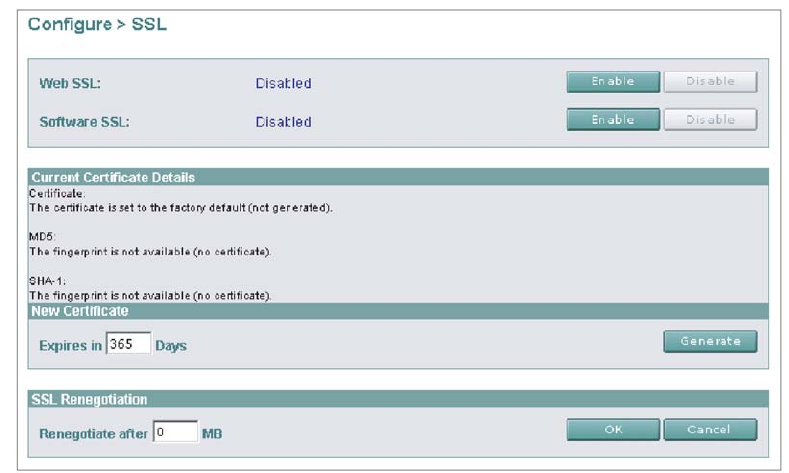

Figure 52 SSL view
2. Click the Enable or Disable button to activate or deactivate the web SSL.
With web SSL enabled, all data transmitted over an authenticated Internet connection is
encrypted.
3. Click the Enable or Disable button to activate or deactivate the software SSL.
Software SSL enables use of an application program interface (API) connection. With software
SSL enabled, secure and unsecure communications are acceptable; however, unsecure
communications are directed to an encrypted API connection.
4. To define the expiration period (in days) of the digital certificate, type a value between 30 and
3650 in the Expires in box. The default is 365 days. Click Generate to generate a new
certificate.
5. To define a renegotiation parameter (in megabytes) for the SSL session key, type a value
between 50 and 10000 in the Renegotiate after box.
The value defines the MB of data transmitted over the connection before triggering the
regeneration of a new SSL session key. An SSL session key (not part of the digital certificate) is
valid only during the SSL connection, and is renegotiated per the value entered.
6. Click OK to save and activate changes.
Installing PFE keys (Optional)
The following PFE-keyed options are available:
• Element Manager application—This feature enables out-of-band product management through
an Element Manager interface. Products are delivered with the application and enabled for a
