Using the HAFM Basic interface82
3. Click OK to save the information.
The following message is displayed:
Your changes have been successfully activated
Enabling or disabling the CLI
Perform this procedure to enable or disable the Edge Switch’s command line interface.
1. Click Configure > CLI.
The CLI view is displayed (Figure 50).

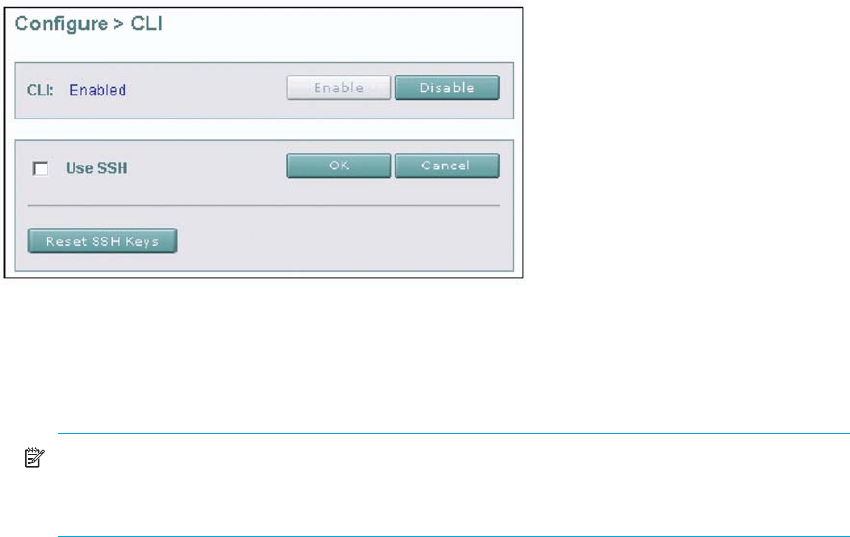

Figure 50 CLI view
2. Click the Enable or Disable button to enable or disable the CLI.
3. Select the Use SSH check box to enable secure shell (SSH).
The SSH protocol controls CLI access to the product and provides software-enforced encryption.
NOTE: The default protocol value is Telnet, which means that data is not encrypted between
the user and the product. By selecting SSH, data, such as a user ID and password, is
encrypted between the user and the product.
4. Click OK.
The following message is displayed:
Your changes have been successfully activated
Enabling or disabling OSMS and host control
Perform this procedure to enable or disable host control of the Edge Switch through the Open
System Management Server (OSMS). The OSMS is a keyed feature that allows host control and
inband management of an Edge Switch through a management application that resides on an
open-systems interconnection (OSI) device. This device is attached to a Director or Edge Switch port.
The device communicates with the Edge Switch or Director through the Fibre Channel common
transport (FC-CT) protocol.
1. Click Configure > OSMS.
