Edge Switch 2/24 installation guide 79
The following message is displayed:
Your changes have been successfully activated
5. Set the Edge Switch online (see ”Setting the Edge Switch offline and online” on page 71).
Configuring network information
The way in which you configure network information depends on the type of LAN installed at your
facility:
• If one Edge Switch is installed on a dedicated LAN, network information (IP address, subnet
mask, and gateway address) does not require change. Go to ”Configuring Edge Switch ports”
on page 71.
• If multiple Edge Switches are installed or a public LAN segment is used, network information
must be changed to conform to your LAN addressing scheme. Perform one of the following:
• If network information was changed while performing”Edge Switch network addresses” on
page 31, go to ”Configuring SNMP trap message recipients” on page 80.
• If network information was not changed, perform the procedure that follows.
To change an Edge Switch IP address, subnet mask, or gateway address:
1. Select Configure > Switch > Network.
The Network view is displayed (Figure 48).

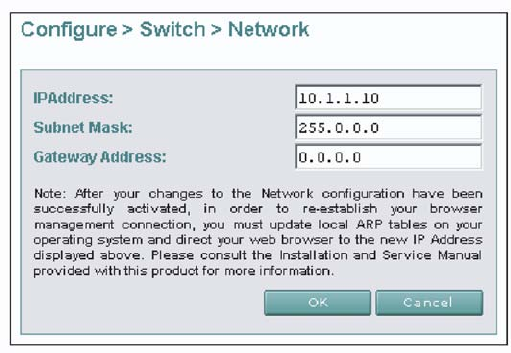

Figure 48 Network view
2. Make the following entries:
a. Enter the new value specified by the network administrator in the IP Address box.
Default is 10.1.1.10.
b. Enter the new value specified by the network administrator in the Subnet Mask box.
Default is 255.0.0.0.
c. Enter the new value specified by the network administrator in the Gateway Address box.
Default is 0.0.0.0.
