Edge Switch 2/24 installation guide 75
If the Edge Switch is installed on a public LAN, the name should reflect the Edge Switch’s
Ethernet network DNS host name. For example, if the DNS host name is hpes224.hp.com,
enter hpes224.
b. Enter an Edge Switch description of 255 or fewer alphanumeric characters in the Description
box.
c. Enter the Edge Switch physical location (255 or fewer alphanumeric characters) in the
Location box.
d. Enter the name of a contact person (255 or fewer alphanumeric characters) in the Contact
box.
2. Click OK to save the information.
The following message is displayed:
Your changes have been successfully activated
Configuring date and time
Perform this procedure to configure the effective date and time for the Edge Switch.
1. Select Configure > Switch > Date & Time.
The Date Time view is displayed (Figure 45).

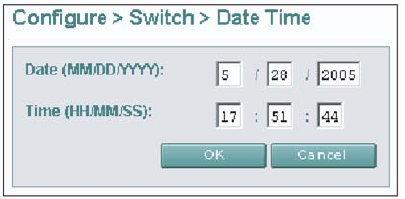

Figure 45 Date Time view
a. Click the Date boxes that require change, and enter numbers in the following ranges:
Month (MM): 1 through 12
Day (DD): 1 through 31
Year (YYYY): greater than 1980
b. Click the Time boxes that require change, and enter numbers in the following ranges:
Hour (HH): 0 through 23
Minute (MM): 0 through 59
Second (SS): 0 through 59
2. Click OK to save the information.
The following message is displayed.
Your changes have been successfully activated
