Edge Switch 2/24 installation guide 71
• Interswitch links—Includes preferred path and interswitch link (ISL) port fencing.

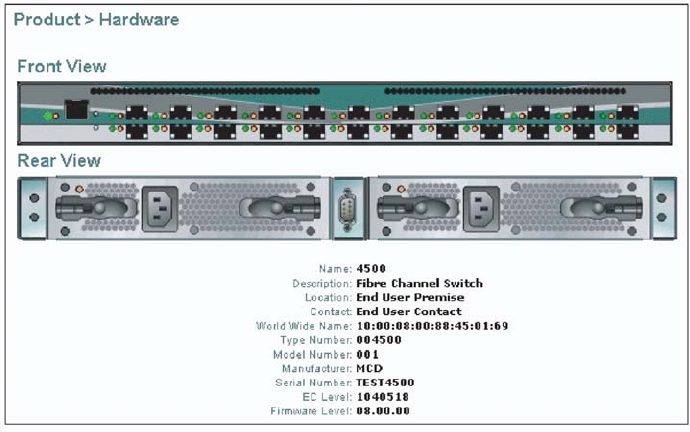

Figure 42 HAFM Basic interface—Hardware view
Setting the Edge Switch offline and online
To configure some Edge Switch settings, you must set the Edge Switch offline. Once you have
configured the settings, you need to set the Edge Switch back online again.
To set the Edge Switch offline:
• Select Configure > Switch Offline.
The following message is displayed:
Your operations changes have been successfully activated
To set the Edge Switch online:
• Select Configure > Switch Online.
The following message is displayed:
Your operations changes have been successfully activated
Configuring Edge Switch ports
To configure ports, there are three dialog boxes:
• Basic Information—Enables you to configure basic aspects of a port, such as the ports name,
the blocked status, the Fabric Address Notification (FAN) status, the port type, and the port
speed.
• Rx BB Credit—Enables you to configure receive BB_Credits for a port.
