Using the HAFM Basic interface70

3. At the browser, enter the IP address of the Edge Switch as the internet Uniform Resource Locator

(URL). Use the default IP address of 10.1.1.10 or the IP address configured while performing

”Configuring network information” on page 79.

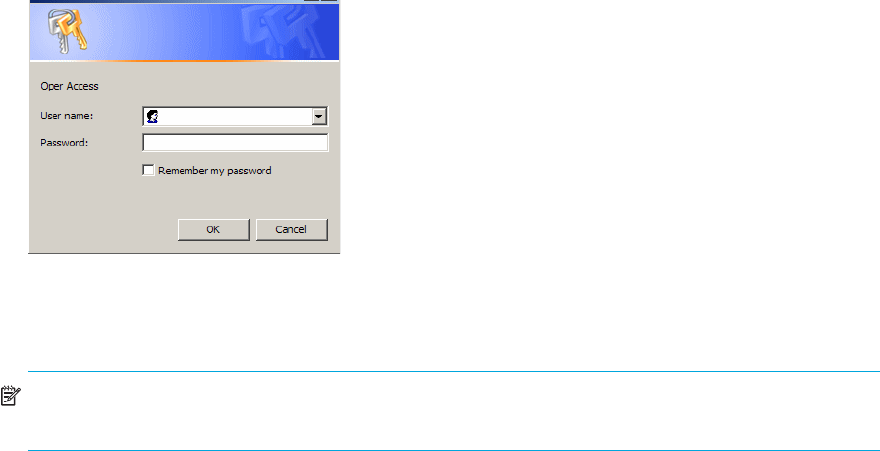

The Enter Network Password dialog box is displayed (Figure 41).

Figure 41 Enter Network Password dialog box

4. Enter the default user name and password.

The First Time Login view displays.

NOTE: The default user name is Administrator and the default password is password. The user

name and password are case-sensitive.

5. Enter the customer-specified values in the User Name, New Password, and Confirm Password

boxess, and then click Activate.

The Topology view appears with status information about each fabric element, including the

product to be configured.

6. Click Switch Details.

The Hardware view is displayed (Figure 42).

7. You can configure the product from the HAFM Basic interface. From the menu bar at the top of

the view, selectively configure the following information according to customer requirements:

• Product—Includes identification, date and time, parameters, fabric parameters, and network

addresses.

• Ports—Includes basic information, buffer-to-buffer credits (BB_Credits), and N_Port identifier

virtualization (NPIV).

• Management—Includes SNMP trap message recipients, command line interface (CLI), open

systems management server (OSMS), and secure socket layer (SSL) encryption.

• Options—Includes product feature enablement (PFE) keys.

• Security—Includes SANtegrity Authentication (settings, access control list, and remote

authentication dial-in user service [RADIUS] server support), Enterprise Fabric Mode (EFM),

and SANtegrity Binding (fabric, switch, and port binding).
