Using HAFM to configure the Edge Switch64
The Discover Setup dialog box is displayed (Figure 38).

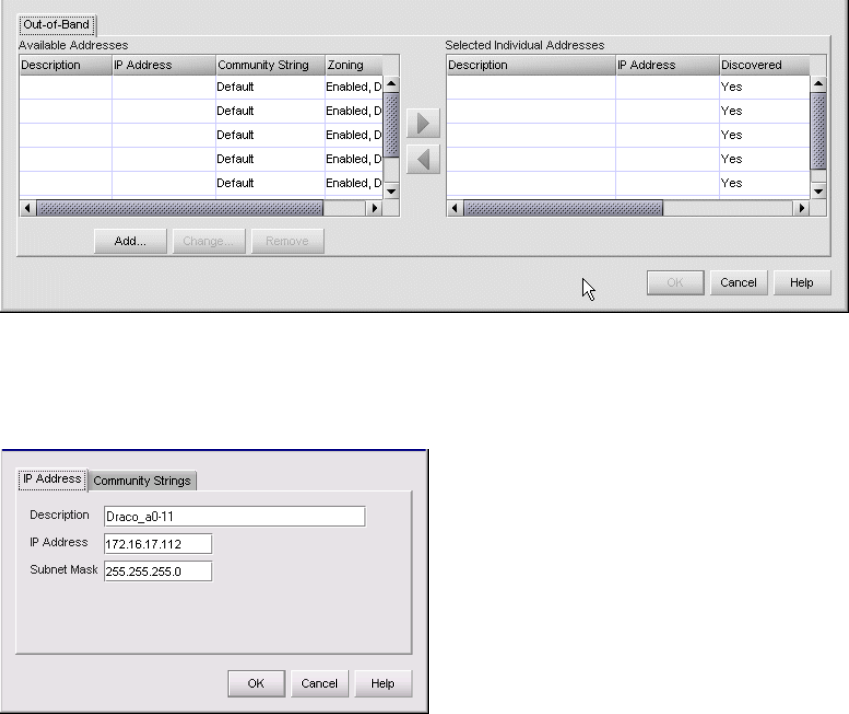

Figure 38 Discover Setup dialog box
c. Select (highlight) the entry representing the reset switch in the Available Addresses panel and
click Edit.
The Address Properties dialog box is displayed (Figure 39).
Figure 39 Address Properties dialog box
d. Enter 10.1.1.10 in the IP Address box and click OK.
Entries in the Discover Setup dialog box reflect the new IP address.
e. In the Discover Setup dialog box, click OK.
Switch-to-management appliance communication is restored and the procedure is complete.
