Using HAFM to configure the Edge Switch62

Configuring SANtegrity Authentication

Use this optional feature to configure authentication security settings. You configure these settings

using the SANtegrity Authentication dialog box.

NOTE: You must have Administrator privileges to access the SANtegrity Authentication dialog box.

To access the SANtegrity Authentication dialog box:

From the Element Manager window, select Configure > SAN

tegrity Authentication.

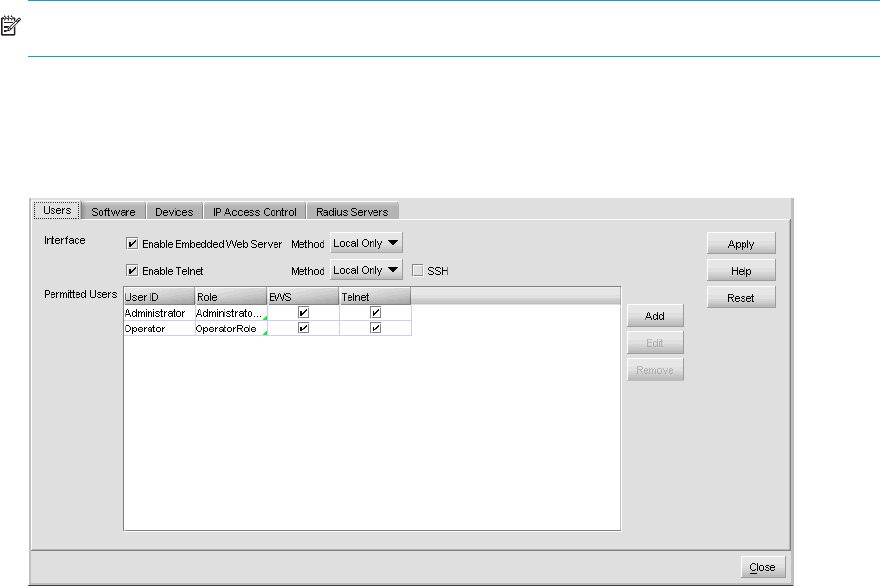

The SANtegrity Authentication dialog box is displayed (Figure 36).

Figure 36 SANtegrity Authorization dialog box

This dialog box contains five tabs:

• Users—Allows you to set up users who access the Edge Switch from CLI and web interfaces.

• Software—Allows you to set up software applications that communicate with the Edge Switch

through the API, and set up OSMS authentication.

• Devices—Allows you to set device-to-device authentication parameters. The Devices tab is

preferred path PFE key enabled. If a proper PFE key is not provided, the Devices tab is not

accessible. See the HP StorageWorks Edge Switch Element Manager user guide for more

information.

• IP Access Control—Allows you to setup IP addresses that can manage the Edge Switch.

• Radius Servers—Allows you to set Radius server parameters that the Edge Switch uses to

communicate the authentication information to the designated Radius servers.

For information about using each of these tabs, see the online Help.
