Using HAFM to configure the Edge Switch60
A final screen is displayed to provide a summary of your alert configuration (Figure 34).

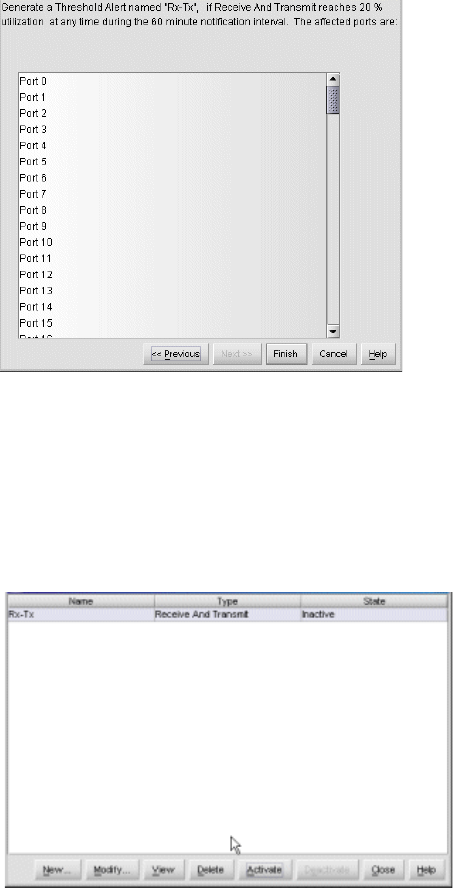

Figure 34 New Threshold Alerts dialog box
—summary screen
12.Click Finish.
The Configure Threshold Alerts dialog box is displayed with a list of the name, type, and state of
the alert that you just configured. At this point, the alert is not active.
13.To activate the alert, select the alert information that is displayed in the Configure Threshold
Alerts table and click Activate (Figure 35).
The alert is activated.
Figure 35 Configure Threshold Alerts dialog box
—alert activated
Modifying alerts
Use the following steps to modify an existing threshold alert configuration:
1. At the Hardware view, select Configure > Threshold Alerts.
The Configure Threshold Alerts dialog box is displayed.
2. Select the alert that you want to modify by clicking the alert information in the table.
