NOTE: Click Previous if you need to return to the previous screen.

6. Enter a percentage from 1 through 100 for % utilization.

When throughput reaches this percentage of port capacity, a threshold alert occurs.

7. Enter the amount of cumulative minutes in which the % utilization should exist during the

notification interval before an alert is generated.

You can also select At any time if you want an alert to occur whenever the set % utilization is

reached. The valid range is from 1 to the interval value set in step 8.

8. Enter the interval in minutes in which throughput is measured and threshold notifications can

occur.

The valid range is 5 minutes to 70,560 minutes.

9. Click Next.

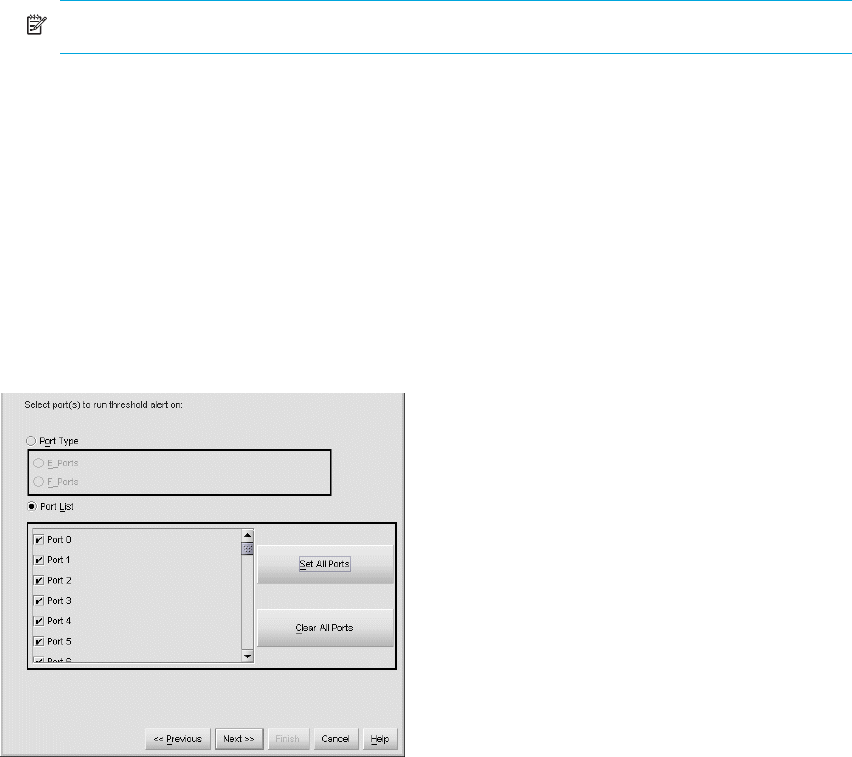

A new screen is displayed for selecting ports for the alerts (Figure 33).

Figure 33 New Threshold Alerts dialog box

—third screen

10.Select either Port Type or Port List:

• For Port Type, select either E_Ports or F_Ports to cause this alert to be generated for all ports

configured as E_Ports or F_Ports respectively.

• For Port List, you can select individual ports by selecting the check box by each port number

or clicking Set All Ports. Selecting Set All Ports places a check mark by each port number.

Selecting Clear All Ports clears the check marks by each port number.

11.Click Next.
