Using HAFM to configure the Edge Switch58

The New Threshold Alerts dialog box is displayed (Figure 31).

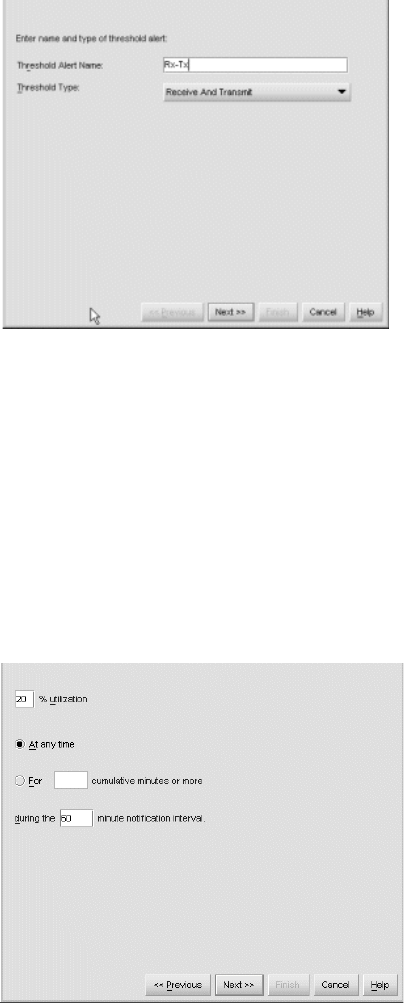

Figure 31 New Threshold Alerts dialog box

—first screen

3. Enter a name from one to 64 characters in length in the Threshold Alert Name box. All

characters in the ISO Latin-1 character set, excluding control characters, are allowed.

4. Select one of the following from the Threshold Type drop-down list:

• Transmit—An alert occurs if the threshold set for transmit throughput is reached.

• Receive—An alert occurs if the threshold set for receive throughput is reached.

• Receive And Transmit—An alert occurs if the threshold set for either receive or transmit

throughput is reached.

5. Click Next.

A new screen is displayed with additional parameters (Figure 32). The name configured for the

alert is displayed at the top of the screen.

Figure 32 New Threshold Alerts dialog box

—second screen
