Using HAFM to configure the Edge Switch54

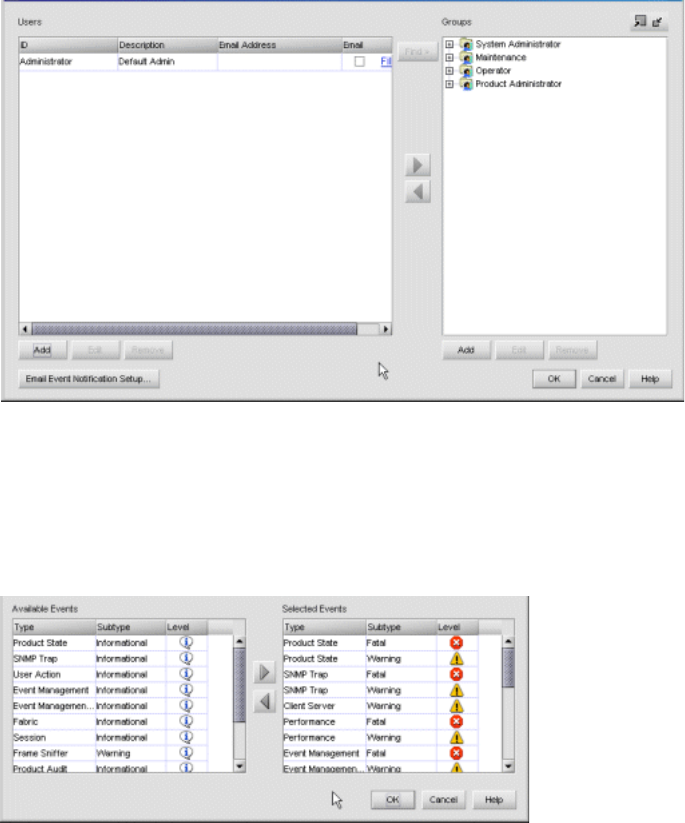

The HAFM 8.7 Server Users dialog box is displayed (Figure 26).
Figure 26 HAFM 8.7 Server Users dialog box
8. To enable e-mail notification for a user, select the check box in the Email column.
An unchecked box indicates e-mail notification is not enabled.
9. To configure event types for which e-mail notification is sent, select the Filter link adjacent to the
check box.
The Define Filter dialog box is displayed (Figure 27).
Figure 27 Define Filter dialog box
10.Select the filters that you want for this user.
11.Click OK to close the Define Filter dialog box.
12.Click OK to close the HAFM 8.7 Server Users dialog box.
13.Click Send Test Email.
A test message is sent to configured e-mail recipients.
14.Click OK to save the information and close the Email Event Notification dialog box.
15.Maximize the Hardware view (Element Manager).
