Using HAFM to configure the Edge Switch52

port if Port Binding is enabled. If a valid WWN or nickname is not entered in this box, but

the Port Binding check box is enabled, no devices can connect to the port. If you enter a

WWN or nickname in this box and do not enable the Port Binding check box, the WWN or

nickname will be stored, and all devices can connect to the port.

2. Use the vertical scroll bar as necessary to display additional port information rows.

3. Click Activate to save the configuration information and close the dialog box.

Configuring SNMP trap message recipients

Perform this procedure to configure community names, write authorizations, and network addresses

for up to 12 SNMP trap message recipients per HAFM appliance or up to 6 SNMP trap message

recipients per Edge Switch. A trap recipient is a management workstation that receives notification

(through SNMP) if an Edge Switch event occurs.

1. At the Hardware view for the selected Edge Switch, select Configure > SNMP Agent.

The Configure SNMP Agent dialog box is displayed (Figure 24).

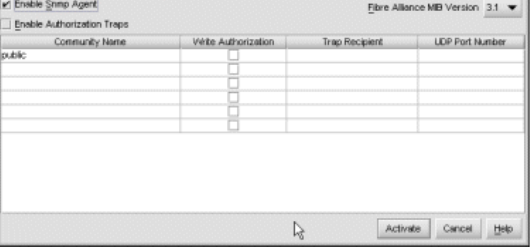

Figure 24 Configure SNMP Agent dialog box

a. For each trap recipient to be configured, enter a community name of 64 or fewer

alphanumeric characters in the associated Community Name box.

The community name is incorporated in SNMP trap messages to ensure against

unauthorized viewing or use.

b. Select or clear the Write Authorization check box to enable or disable write authorization for

the trap recipient (default is disabled).

A check mark in the box indicates write authorization is enabled. When the feature is

enabled, a management workstation user can change the HAFM appliance’s

sysContact, sysName, and sysLocation SNMP variables.

c. Enter the IP address or DNS host name of the trap recipient (SNMP management

workstation) in the associated Trap Recipient box. Use 32 or fewer alphanumeric characters.

HP recommends using the IP address.

d. Enter a decimal port number in the UDP Port Number box to override the default user

datagram protocol (UDP) port number for trap recipients (default is 162).

2. To enable transmission of trap messages to configured SNMP management workstations, select

Enable Authorization Traps.

3. Click Activate to save the information and close the dialog box.
