Using HAFM to configure the Edge Switch44

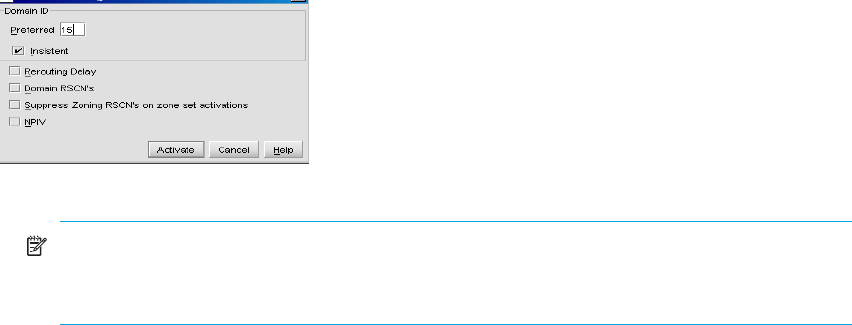

The Configure Switch Parameters dialog box is displayed (Figure 19).
Figure 19 Configure Switch Parameters dialog box
NOTE: Ordinarily, you do not need to change values in this dialog box from their defaults.
The only exception is the Preferred Domain ID. Change this value if the Edge Switch will
participate in a multiswitch fabric.
3. Use information in the ”Edge Switch parameters” section, which follows, to change settings as
required for parameters in this dialog box.
4. After you change settings, click the Activate button.
5. Set the Edge Switch online. For instructions, see ”Setting the Edge Switch online and offline” on
page 41.
Edge Switch parameters
Configure the following parameters, as required by your fabric.
Domain ID
The domain identification is a value from 1 through 31 that provides a unique identification for the
Edge Switch in a fabric. An Edge Switch cannot contain the same domain ID as another Edge
Switch or their E_Ports will segment when they try to join.
In the Configure Switch Parameters dialog box, a box is provided to enter a preferred domain ID
and a check box is provided to enable this ID as an insistent domain ID.
Preferred
Use this box to set a unique domain ID for the Edge Switch. The default value is 1. Set a value from
1 through 31. When an Edge Switch comes online with a preferred ID, it requests an ID from the
fabric’s principal Edge Switch (indicating its preferred value as part of the request). If the requested
domain ID is not allocated to the fabric, the domain ID is assigned to the requesting Edge Switch. If
the requested domain ID is already allocated, an unused domain ID is assigned.
The preferred domain ID must be unique for each Director and Edge Switch in a fabric. If two Edge
Switches or Directors have the same preferred domain ID, the E_Ports segment, causing the fabric to
segment.
For more information on domain ID, see the section on domain ID assignment for multiswitch fabrics
in the HP StorageWorks HA-Fabric Manager user guide for details.
