Edge Switch 2/24 installation guide 33

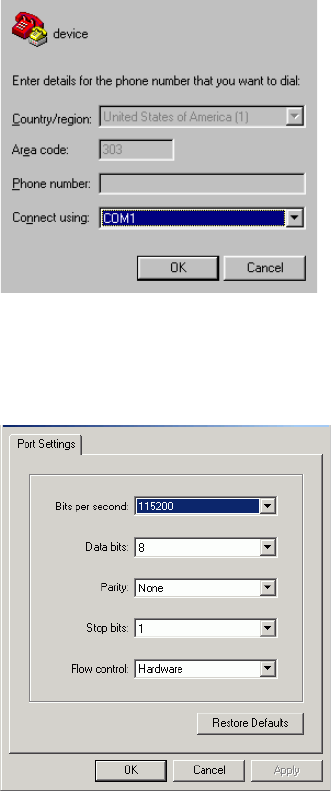

The Connect To dialog box is displayed (Figure 9).
Figure 9 Connect To dialog box
6. Ensure that the Connect using box displays COM1 or COM2 (depending on the serial
communication port connection to the Edge Switch), and click OK.
The Port Settings dialog box is displayed (Figure 10).
Figure 10 Port Settings dialog box
7. Enter the Port Settings parameters as follows:
•Bits per second—115200
• Data bits—8
•Parity—None
• Stop bits—1
• Flow control—Hardware
When the parameters are set, click OK.
The HyperTerminal window is displayed.
8. At the > prompt, enter the user-level password (the default is password) and press Enter.
