Connecting the Edge Switch32
• Microsoft Windows 98, Windows 2000, Windows Server 2003, Windows Millennium
Edition, or Windows XP operating system
• RS-232 serial communication software (for example, ProComm Plus or HyperTerminal)
NOTE: HyperTerminal is included with Windows 2000 or Windows Server 2003, which
are provided in the HAFM appliance.
• An asynchronous RS-232 null modem cable (provided with the Edge Switch)
To change an Edge Switch’s IP address, subnet mask, or gateway address:
1. Remove the protective metal plate from the 9-pin maintenance port at the rear of the Edge Switch
(a Phillips-tip screwdriver is required). Connect the 9-pin end of the RS-232 null modem cable to
the port.
2. Connect the other cable end to a 9-pin communication port (COM1 or COM2) at the rear of the
workstation.
3. Power on the workstation.
After the workstation powers on, the Windows desktop is displayed. See the operating
instructions shipped with the PC for additional information.
4. Select Start > Programs > Accessories > Communications > HyperTerminal.

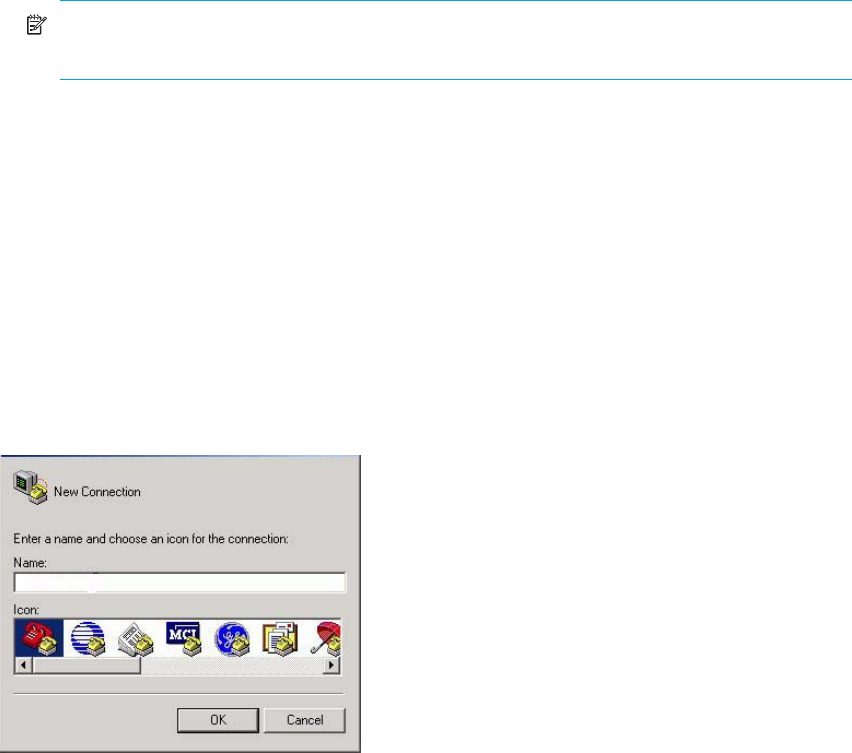

The Connection Description dialog box is displayed (Figure 8).
Figure 8 Connection Description dialog box
5. Enter edge switch 2-24 in the Name box and click OK.
