Edge Switch 2/24 installation guide 103

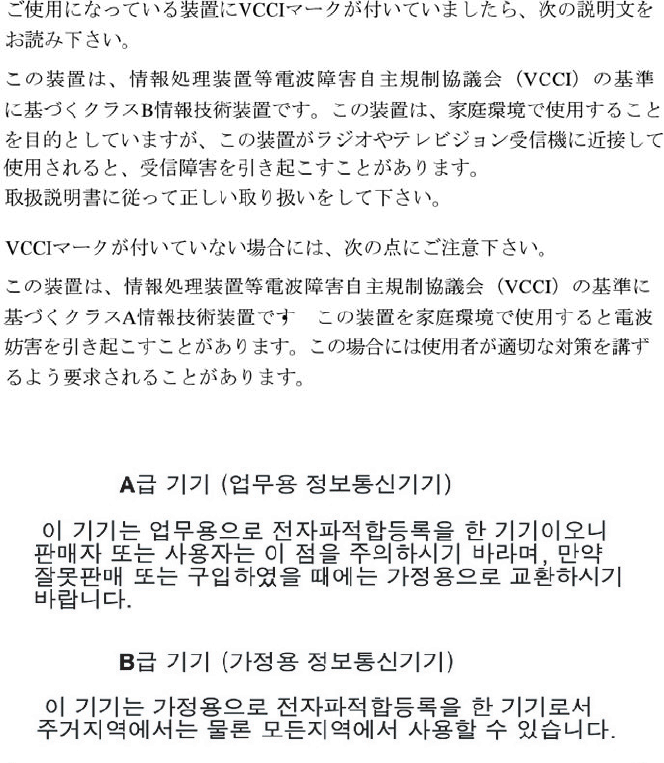

Japanese notice
Korean notices
Safety
Battery replacement notice
Your computer is equipped with a lithium manganese dioxide, a vanadium pentoxide, or an
alkaline internal battery or battery pack. There is a danger of explosion and risk of personal injury
if the battery is incorrectly replaced or mistreated. Replacement is to be done by an HP-authorized
service provider using the HP spare part designated for this product. For more information about
battery replacement or proper disposal, contact an HP-authorized reseller or HP-authorized service
provider.
