Edge Switch 2/24 installation guide 85

Back up the configuration

Use these steps to back up the configuration file on the HAFM appliance.

1. At the HAFM appliance, open the HAFM application. The Products View page is displayed.

2. At the SAN management application’s physical map, right-click the product icon representing

the switch for which a configuration file is to be backed up, then select Element Manager from

the pop-up menu. The application opens.

3. Select Maintenance > Backup & Restore Configuration. The Backup and Restore Configuration

dialog box is displayed (Figure 52).

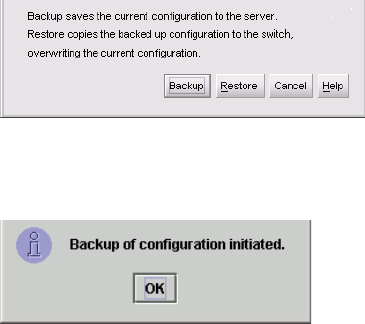

Figure 52 Backup and Restore Configuration dialog box

4. Click Backup. An Information dialog box is displayed, indicating the backup operation was

initiated (Figure 53).

Figure 53 Information dialog box

5. Click OK to complete the backup operation and close the dialog box.
