Using the Embedded Web Server76

c. Delete the switch’s old IP address from the ARP table. At the command (C:\) prompt, enter

arp —d xxx.xxx.xxx.xxx. The xxx.xxx.xxx.xxx is the old IP address for the

switch.

d. Click close (X) at the upper right corner of the DOS window to close the window or enter

exit at the prompt to return to the Windows desktop.

4. At the PC, launch the browser application (Netscape Navigator

or Internet Explorer).

5. At the browser, enter the switch’s new IP address as the Internet URL. The Enter Network

Password dialog box appears.

6. Enter the user name and password.

NOTE: The default user name is Administrator

and the default password is password. The

user name and password are case-sensitive.

7. Click OK. The EWS interface opens with the View window displayed.

Configure SNMP trap message recipients

Perform this procedure to configure community names, write authorizations, and network addresses

and for up to six SNMP trap message recipients per Edge switch or director, or up to 12 SNMP trap

message recipients per HAFM appliance. A trap recipient is a management workstation that

receives notification (through SNMP) if a switch event occurs.

To configure SNMP trap recipients:

1. Select Configure > Management to display the SNMP tab (Figure 43).

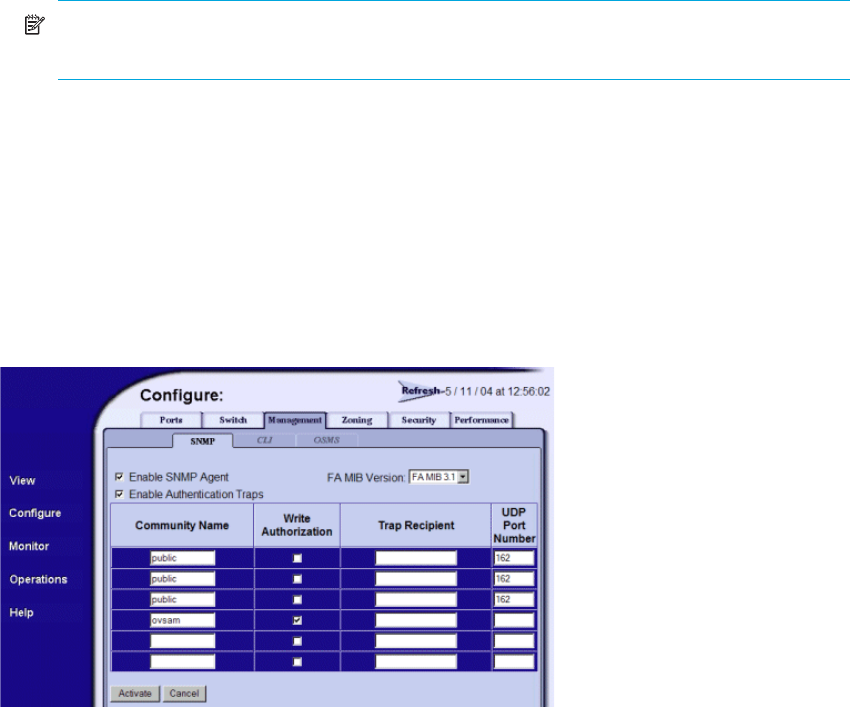

Figure 43 Management page—SNMP tab

a. Click the Enable Authentication Traps check box to enable or disable transmission of SNMP

trap messages to configured recipients.
