Edge Switch 2/24 installation guide 37

8. At the > prompt, enter the user-level password (the default is password). The password is case

sensitive. The HyperTerminal window appears with a C> prompt at the top of the window

(Figure 10).

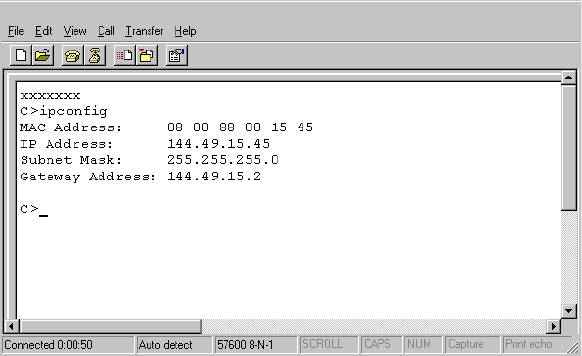

Figure 10 HyperTerminal window

9. At the C> prompt, enter ipconfig. The HyperTerminal window is displayed with configuration

information listed as follows:

•MAC Address

• IP Address (default is 10.1.1.10, factory preset is 10.1.1.10)

•Subnet Mask (default is 255.0.0.0).

• Gateway Address (default is 0.0.0.0)

Only the IP Address, Subnet Mask, and Gateway Address fields are configurable.

10.Change the IP address, subnet mask, and gateway address as directed by the customer’s

network administrator. To change switch network addresses, enter the following at the C>

prompt:

ipconfig xxx.xxx.xxx.xxx yyy.yyy.yyy.yyy zzz.zzz.zzz.zzz

The IP address is always xxx.xxx.xxx.xxx, the subnet mask is always yyy.yyy.yyy.yyy,

and the gateway address is always zzz.zzz.zzz.zzz, where the octets xxx, yyy, and zzz

are decimals from zero through 255. If a network address is to remain unchanged, enter the

current address in the respective field.

When the new network addresses are configured at the switch, the message Request

completed OK appears at the bottom of the Edge Switch 2/24 — HyperTerminal window.
