2. Using the torque driver and the screws you removed earlier, attach the left and right slide rails to

the Edge Switch 2/24.

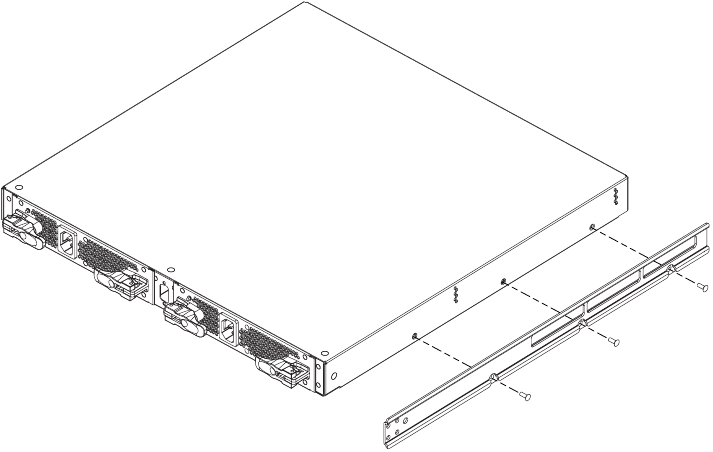

Figure 6 Attaching the slide rail to the switch

Installing the switch in the cabinet

Use these steps to install the switch in the cabinet. You will need a #2 Phillips screwdriver and two

rear spacing brackets to complete this procedure.

1. From the front side of the cabinet, slide the switch into the mounting brackets and along the rails

until the rear of the switch is flush with the rear of the cabinet.

2. Bring the rear spacing brackets to the rear of the cabinet.

3. Pull the switch toward the rear of the cabinet until it protrudes approximately 3 inches.

4. Orient the rear spacing bracket mounts so that they are pointed outward. Insert the tabs on each

rear spacing bracket into the designated slots in each rail.

5. Push the switch forward using both rear spacing brackets until the rear spacing bracket mounts

contact the cabinet rail.

6. Attach the rear spacing brackets to the cabinet using two Phillips panhead screws (10-32 x 5/8)

with flat washer.

7. Ensuring that the square alignment washers are seated properly within the square cabinet frame

holes, use a Phillips head screwdriver to tighten the rear and front mounting screws.
