Chapter 2: Install PolyServe Matrix Server 27
Copyright © 1999-2007 PolyServe, Inc. All rights reserved.
The configuration is then installed on the server that you are using to
connect to the Management Console. You will then be asked whether
you want to start the matrix on that server. If you configured Web
Based Management Fencing, answer No. Otherwise, answer Yes.
Go to the Matrix-Wide Configuration tab.

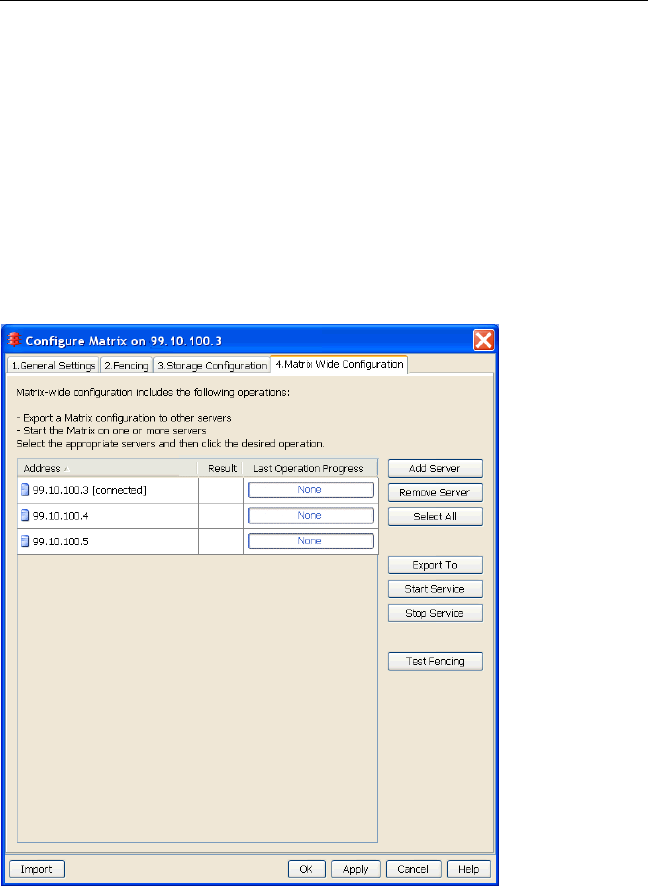

Matrix Wide Configuration
This tab is used to export the matrix configuration to the other servers
that will be in the matrix. It can also be used to start or stop Matrix Server
on specific servers and to test the fencing configuration.
1. Select the servers to be configured. To specify the first server, click
Add Server and type the hostname or IP address of the server on the
Input form. Then click OK to add the server to the Address column.
