Loading UDO media
Note: Label all disks before loading them into the jukebox. Some application software
packages require that you load and eject disks by using instructions in the software. If
you use a software application to manage files in the jukebox, check the software
documentation before proceeding with these steps.
1. Start with READY or LOAD displaying on the control panel.
2. Load UDO media into the drive by inserting the disk gently but firmly into the
opening on the front panel, shutter end first, and with the side you want to
access facing up (A or B). See Figure 11.
An incorrectly inserted disk will be rejected with CART IN WRONG
displaying briefly.

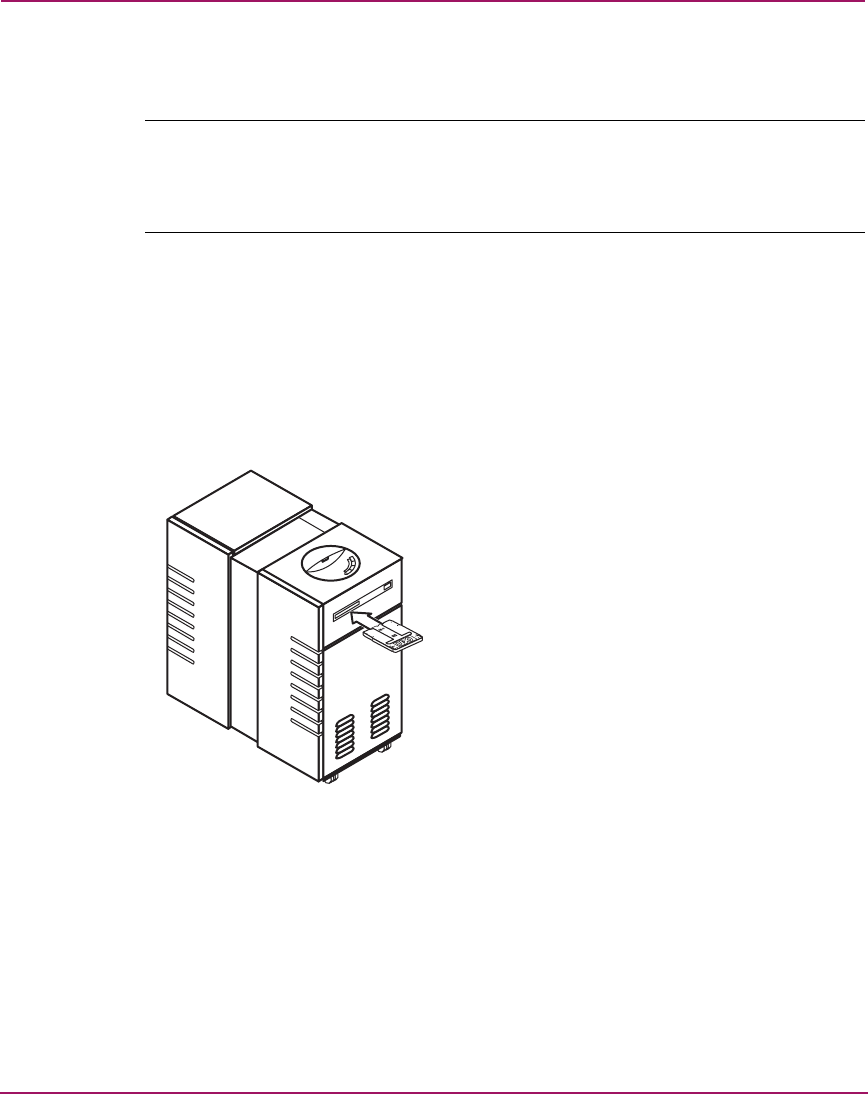

Figure 11: Loading media
3. LOAD SLOT # will display, with # flashing to indicate the number of the
first available storage slot in the jukebox. To select this storage slot number,
press LOAD or ENTER. To choose a different storage slot, press NEXT or
PREV until the desired slot number displays, and then press ENTER.
4. LOADING displays as the jukebox moves the disk to a slot. After the disk is
loaded into the storage slot, LOAD * displays. You can now load additional
disks by inserting them into the mailslot and repeating step 3 until you are
finished loading disks.
