2300ux Optical Jukebox Setup Guide (AA966-96002, September 2004)

Table Of Contents

Installation

22 HP StorageWorks 1000ux/1900ux/2300ux Optical Jukebox Setup Guide

Identifying panel features

Identify the following panel features before you install the jukebox (see Figure 5

and Figure 6 on page 23).

Front panel features and descriptions

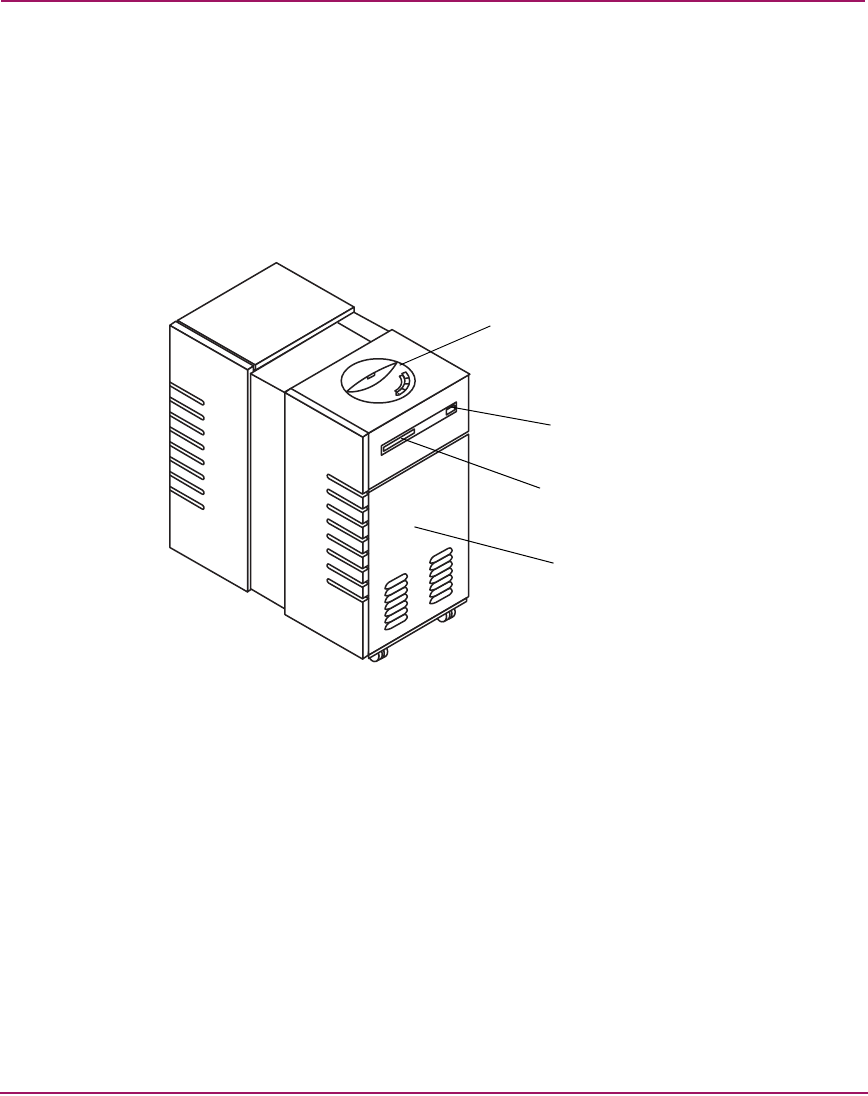

Figure 5: Front panel features

■ Control panel—Used to manually control and monitor operation of the

jukebox. See the user’s guide for information on using the control panel.

■ Power switch—Turns power to the jukebox on and off. Located under the

panel through an access hole.

■ Mailslot—Used to insert and remove disks from the jukebox.

■ Front service access panel—A panel for service access that should only be

removed by qualified personnel.

1 Control panel

2 Power switch

3 Mailslot

4 Front service access panel
