Viewing and editing switch encryption properties
2

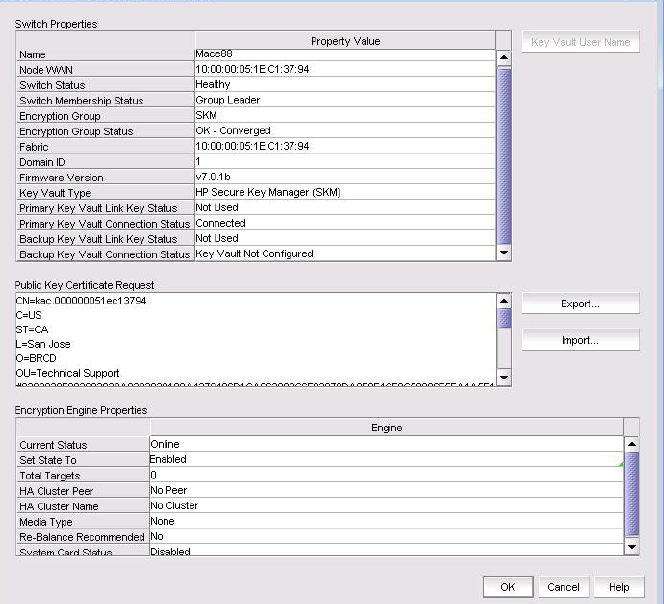

FIGURE 75 Encryption Switch Properties dialog box
The dialog box contains the following information:
• Switch Properties table: A list of properties associated with the selected switch.
• Name: The name of the selected switch
• Node WWN: The world wide name of the node
• Switch Status: The health status of the switch. Options are:
• Healthy
• Marginal
• Down
• Unknown
• Unmonitored
• Unreachable
• Switch Membership Status: The alert or informational message description, which details
the health status of the switch. Options are:
• Group Member
• Leader-Member Comm
• Error
• Discovering
• Not a member
• Encryption Group: The name of the encryption group to which the switch belongs
