106 Fabric OS Encryption Administrator’s Guide (SKM/ESKM)
53-1002721-01
Rekeying all disk LUNs manually
2

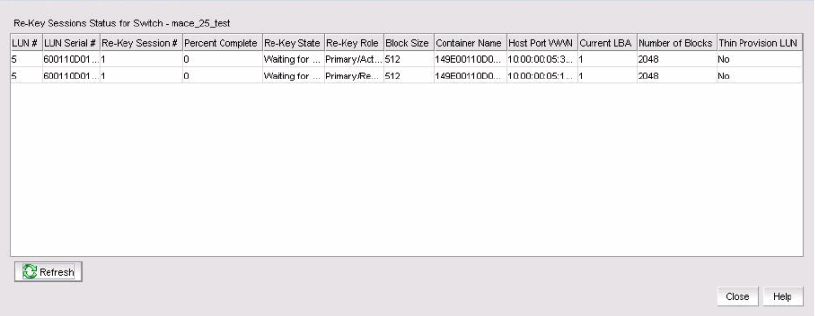

FIGURE 73 Re-Key Sessions Status dialog box
The dialog box contains the following information:
• LUN #: The LUN number.
• LUN Serial #: The LUN serial number.
• Re-Key Session #: The number assigned to the rekeying session.
• Percent Complete: The percentage of completion of the rekeying session.
• Re-Key State: Options are:
• Re-Key Setup
• LUN Prep
• LUN Clean-up
• Key Update
• Read Phase
• Write Phase
• HA Sync Phase
• Re-Key Role: Options are:
• Primary/Active
• Backup/Active
• Block Size: The block size used on the LUN.
• Container Name: The CryptoTarget container name.
• Host Port WWN: The WWN of the host port that is being used for the write operation.
• Current LBA: The Logical Block Address (LBA) of the block that is currently being written.
• Number of Blocks: The number of blocks written.
• Thin Provision LUN: Identifies if the new LUN is a thin provisioned LUN. Options are:
• Yes: Thin provision support is limited to Brocade-tested storage arrays. The thin
provisioned LUN status will be displayed as Yes for supported storage arrays only.
• No: Shown as No if the LUN is not a thin provisioned LUN.
• Unknown: Shown if the LUN status cannot be determined.
• Not Applicable: Applies to Brocade Encryption Switches that are running a Fabric OS
version earlier than v7.1.0.
