Managing Serviceguard 11th Edition, Version A.11.16, Second Printing June 2004

Understanding Serviceguard Software Components
How Package Control Scripts Work
Chapter 3 87
the package cannot start on this node. Another type of resource is a
dependency on a monitored external resource. If monitoring shows a
value for a configured resource that is outside the permitted range, the
package cannot start.
Once a node is selected, a check is then done to make sure the node
allows the package to start on it. Then services are started up for a
package by the control script on the selected node. Strictly speaking, the
run script on the selected node is used to start the package.
During Run Script Execution
Once the package manager has determined that the package can start on
a particular node, it launches the run script (that is, the control script
executed with the ‘start’ parameter. This script carries out the following
steps (also shown in Figure 3-14):
1. Activates volume groups or disk groups.
2. Mounts file systems.
3. Assigns package IP addresses to the LAN card on the node.
4. Executes any customer-defined run commands.
5. Starts each package service.
6. Starts up any resources needed by the package that were specially
marked for deferred startup.
7. Exits with an exit code of zero (0).

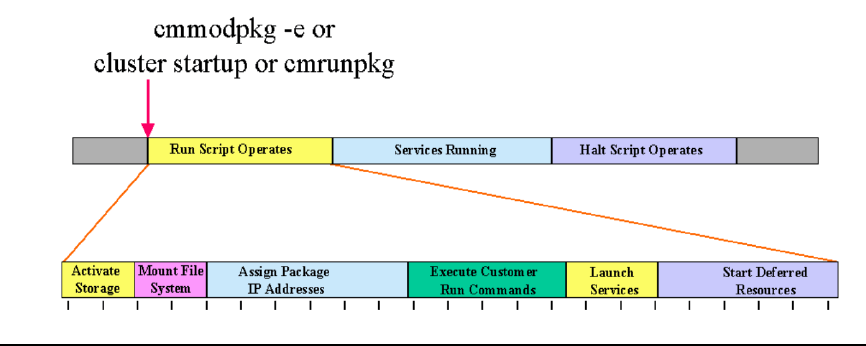

Figure 3-14 Package Time Line for Run Script Execution
