IPv6 Network Support
Example Configurations
Appendix H434
Example Configurations
An example of a LAN configuration on a cluster node using both IPv4
and IPv6 addresses is shown in below.

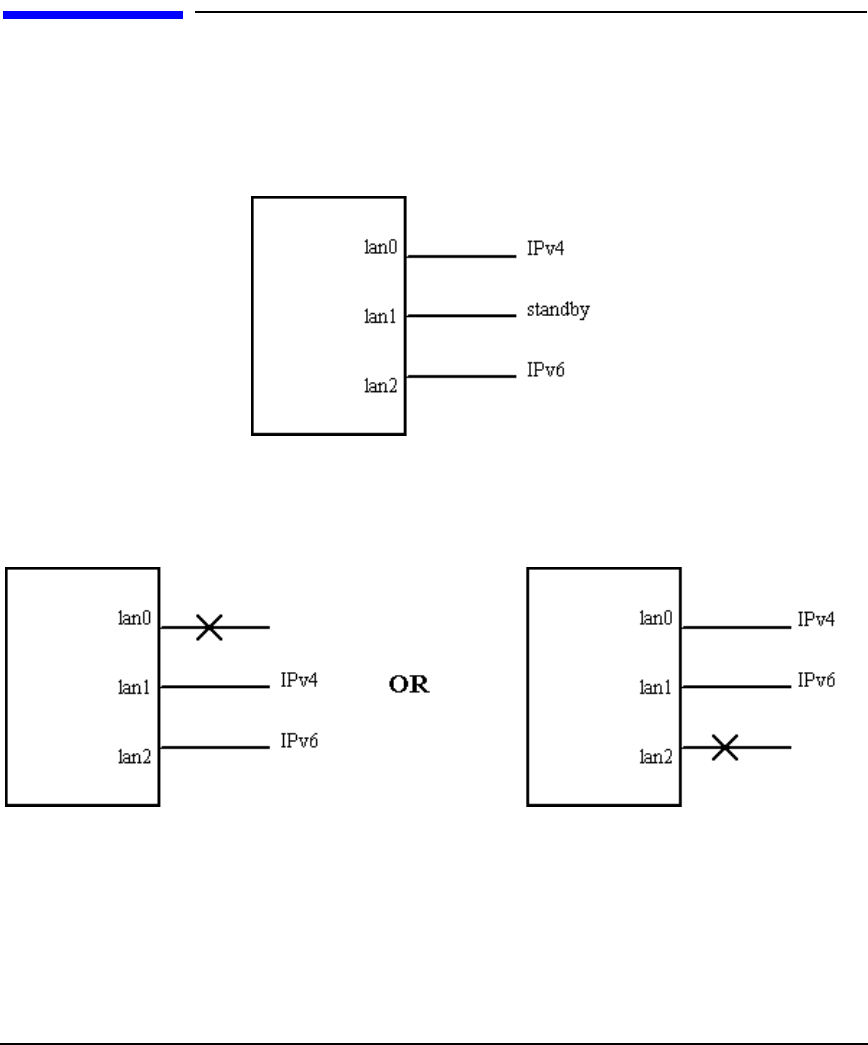

Figure H-1 Example 1: IPv4 and IPv6 Addresses in Standby Configuration
Following the loss of lan0 or lan2, lan1 can adopt either address, as
shown below.
Figure H-2 Example 1: IPv4 and IPv6 Addresses after Failover to Standby
The same LAN card can be configured with both IPv4 and IPv6
addresses, as shown in below.
