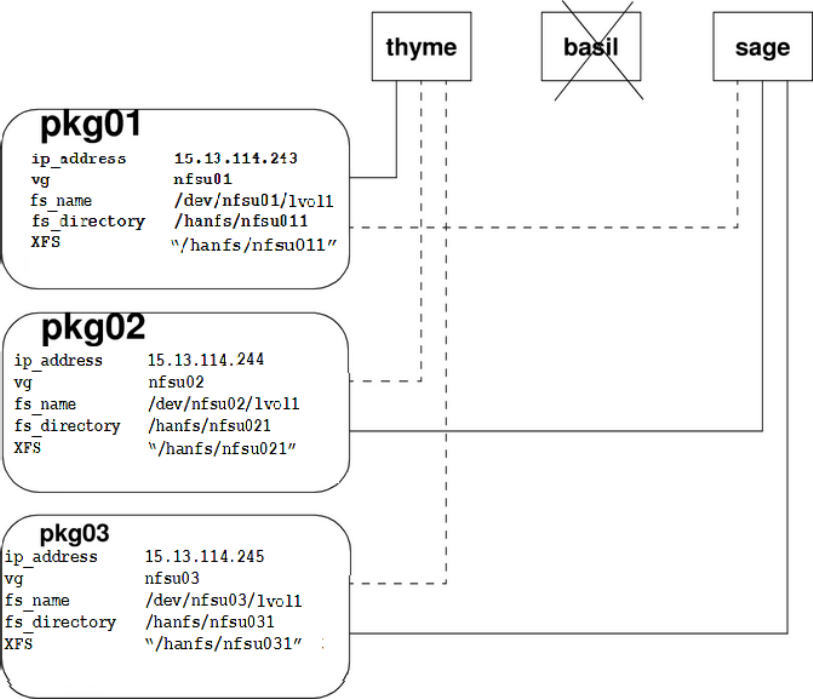

Figure 6-2 Three-Server Mutual Takeover after One Server Fails
Cluster Configuration File for Three-Server Mutual Takeover
This section shows the cluster configuration file (cluster.conf) for this configuration example.
The comments available in the generated configuration file are not displayed in this sample.
CLUSTER_NAME MutTakOvr
FIRST_CLUSTER_LOCK_VG /dev/nfsu01
NODE_NAME thyme
NETWORK_INTERFACE lan0
HEARTBEAT_IP 15.13.119.146
NETWORK_INTERFACE lan1
FIRST_CLUSTER_LOCK_PV /dev/dsk/c0t1d0
NODE_NAME basil
NETWORK_INTERFACE lan0
HEARTBEAT_IP 15.13.113.168
FIRST_CLUSTER_LOCK_PV /dev/dsk/c1t1d0
NODE_NAME sage
NETWORK_INTERFACE lan0
HEARTBEAT_IP 15.13.115.184
NETWORK_INTERFACE lan1
NETWORK_INTERFACE lan2
NETWORK_INTERFACE lan3
FIRST_CLUSTER_LOCK_PV /dev/dsk/c0t1d0
HEARTBEAT_INTERVAL 1000000
NODE_TIMEOUT 2000000
Example One - Three-Server Mutual Takeover 95
